>>>>>型号:IS420UCSBH1A UCSB控制器 控制安全系统
【功能描述】
产品描述

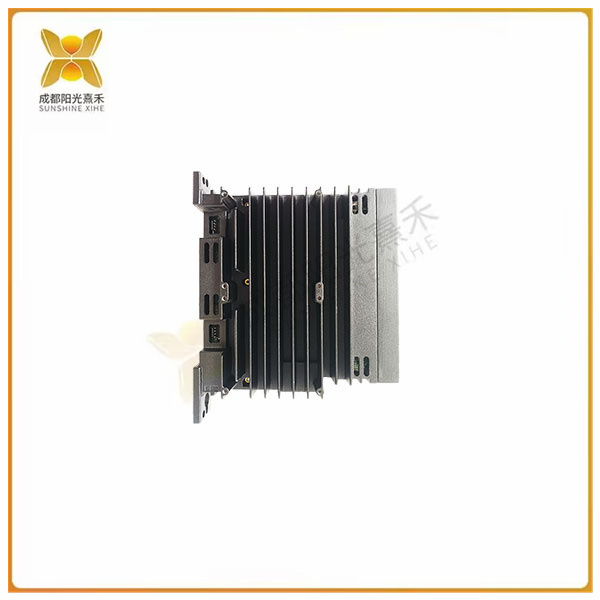

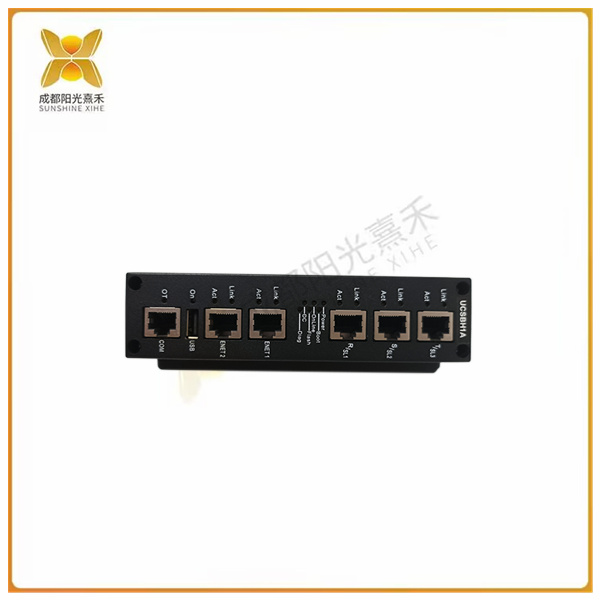

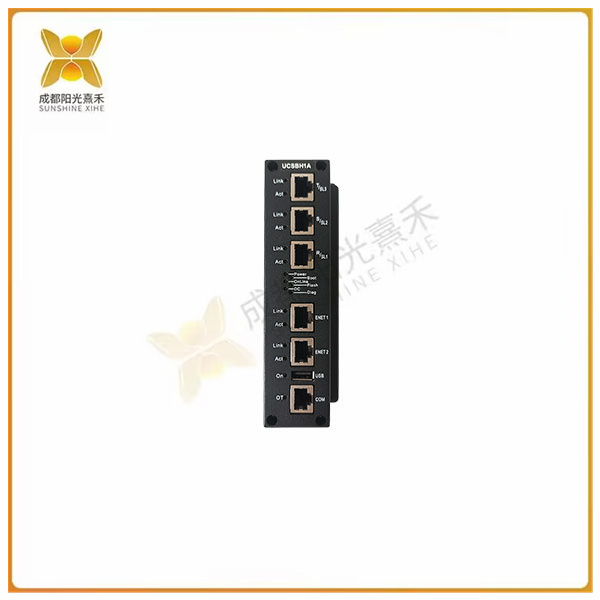

IS420UCSBH1A控制器是通用电气制造的第一款UCSB控制器，是Mark VIe控制安全系统系列的一部分。该控制器类似于UCSC控制器，虽然它没有相同的硬件，但操作该控制器所需的软件几乎相同。根据GEH-6725 Mark VIe和Mark VIeS，控制设备HazLoc说明指南，IS420UCSBH1A控制器标记为Mark VIe、LS2100e和EX2100e控制器。该控制器还使用了一个特定的微处理器，该设备中安装的微处理器是600 MHz EP80579 Intel处理器。
在GEH-6725使用指南的第22页上，有一个小表格，标明了为IS420UCSBH1A供电所需的电气/电源额定值，额定值如下，最小电压为18个直流电，最大为30伏直流电，额定功率为24伏和28伏直流电。该器件使用的最大额定电流为1.5ADC。

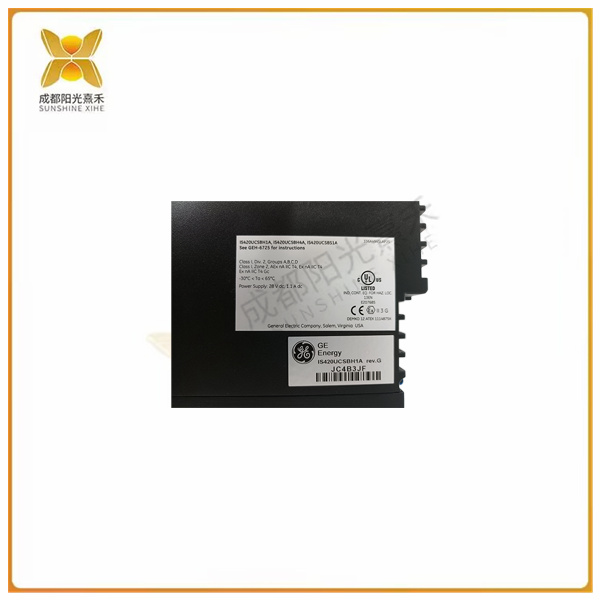

安装时，将IS420UCSBH1A控制器安装在危险和非危险场所都需要多项认证。例如，当安装在ATEX 2区IIC组时，所需的认证是UL DEMKO 12 ATEX 1114875X。有关安装在I类2区IIC组非危险和I类2区A、B、C和D组的控制器的所有认证都是相同的，这些位置的认证要求是UL E207685。
>>>>>型号:IS420UCSBH1A UCSB控制器 控制安全系统
【英文介绍】
Product description
The IS420UCSBH1A controller is the first UCSB controller manufactured by GE and is part of the Mark VIe family of Control safety Systems. The controller is similar to the UCSC controller, although it does not have the same hardware, the software required to operate the controller is nearly the same. According to GEH-6725 Mark VIe and Mark VIeS, HazLoc Instructions for Control Devices, IS420UCSBH1A controllers are labeled Mark VIe, LS2100e, and EX2100e controllers. The controller also uses a specific microprocessor, the microprocessor installed in the device is a 600 MHz EP80579 Intel processor.
On page 22 of the GEH-6725 Usage Guide, there is a small table indicating the electrical/power ratings required to power the IS420UCSBH1A. The ratings are as follows, with a minimum voltage of 18 DC, a maximum of 30 VDC, and a power rating of 24 and 28 VDC. The device uses a maximum rated current of 1.5ADC.
When installing, multiple certifications are required to install the IS420UCSBH1A controller in both hazardous and non-hazardous locations. For example, when installed in the ATEX Zone 2 IIC group, the required certification is UL DEMKO 12 ATEX 1114875X. All certifications are the same for controllers installed in Class I 2 Zone IIC Group Non-hazardous and Class I 2 Zone A, B, C and D, and the certification requirement for these locations is UL E207685.
