>>>>>型号: IS220PPROS1B 配电系统反馈模型 电源板兼容
【功能描述】
IS220PPROS1B板是通用电气为Mark VIe系统制作的配电系统反馈模型。该型号用于调节电路板反馈信号，还可以为连接的控制器提供以太网接口。此电池组的反馈安排为即插即用，它将使用它插入的电子ID来确定所连接配电型号的功率。来自配电模型的信息将继续用于占用IONet输出，以提供来自连接的正确反馈。

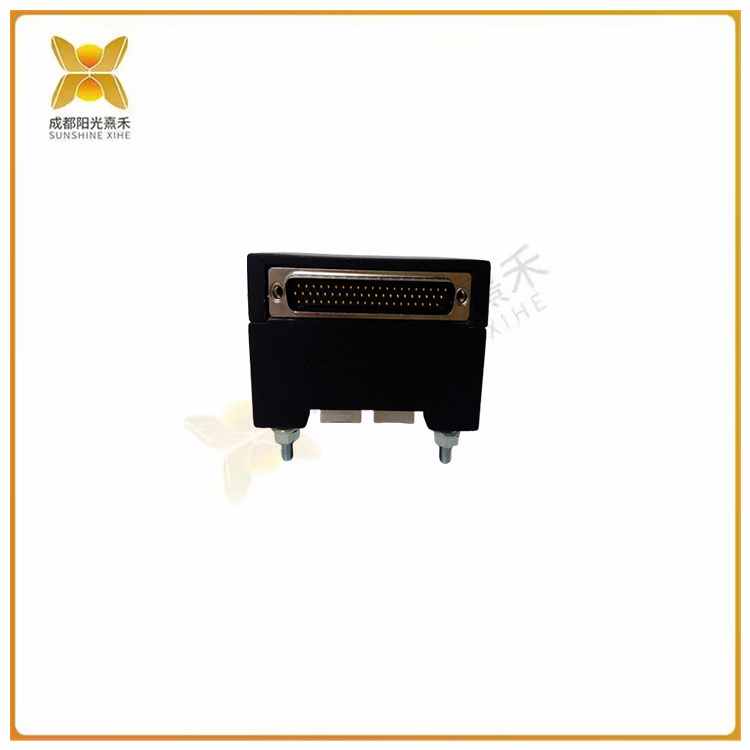

虽然IS220PPROS1B包与JPDC、JPDS、JPDM和JPDG电源板兼容，但它仅与来自JPDB、JPDF和JPDE板的反馈信号兼容。通常，此PPDA包安装在以下板之一上;JPDM、JPDC或JPDS。通过使用50针带状电缆跳线通过引脚一对一连接器的接线，该电池组可以连接到更多电路板。
自动重新配置是IS220PPROS1B包的主要操作组件之一。自动重新配置功能允许轻松更换I/O包，因为更换包无需重新配置。请注意，在进行自动重新配置时，用户在重新配置完成之前将无法重新启动。在重新配置过程中，无法进行其他需要进行的下载。
>>>>>型号: IS220PPROS1B 配电系统反馈模型 电源板兼容
【英文介绍】
The IS220PPROH1A is an I/O module for turbines. It is designed to provide a direct interface to specific turbine site equipment. This setup eliminates or reduces much of the instrumentation previously required to connect to field equipment, and also improves operational reliability and reduces long-term maintenance. The IS220PPROH1A is usually used in conjunction with the TREAH_A terminal board for emergency trip applications in aircraft modification turbines. The assembly can be connected to fence or box terminals. The IS220PPROH1A has field wiring limits for voltage detection, limiting cable length to 1,000 feet of 18 AWG wiring. Note that the IS220PPROH1A cannot be automatically reconfigured when swapping BPPB P-Pack with BPPC P-Pack.
The IS220PPROH1A has a built-in front panel marked with the component ID number and several LED indicators. They are placed in pairs on the front panel. The first pair is labeled PWR/ATTN, the second pair is labeled LINK/TxRx and ENET 1, and the third pair is labeled LINK/TxRx and ENET2. The last component is located at the bottom of the panel; This is labeled as an IR port.
The IS220PPROH1A accepts three speed signals. This includes deceleration, acceleration and speeding. The component also has hardware to enable overspeed. The kit monitors the status and operation of the selected trip plate through a comprehensive set of feedback signals. The suite supports TMR and simplex backup protection.
