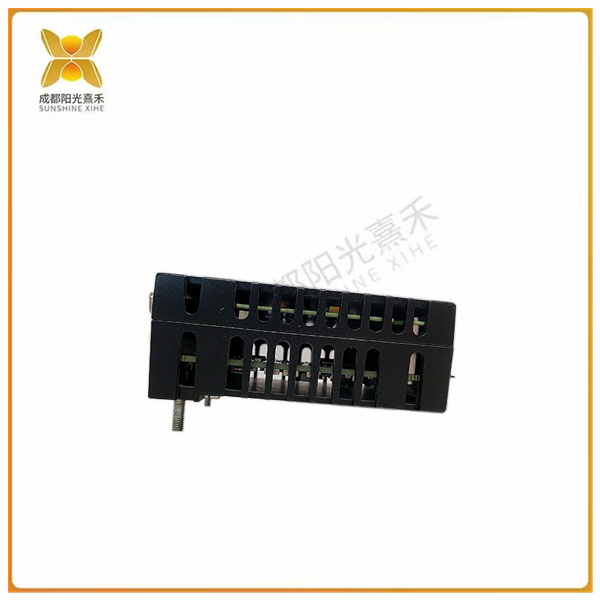

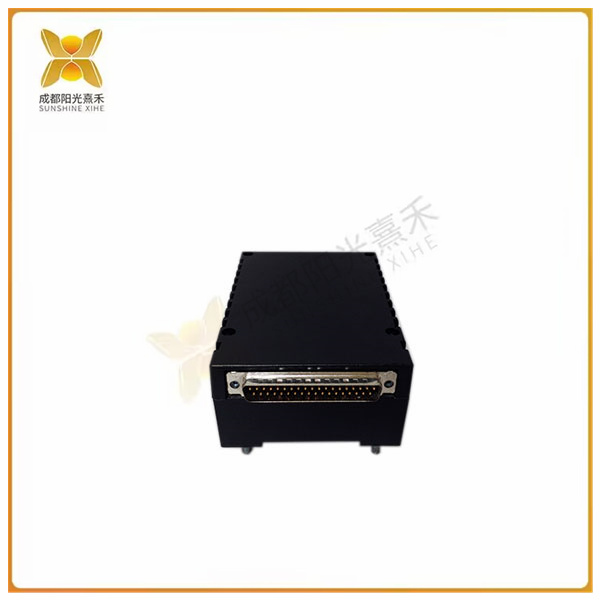

>>>>>型号:IS220PAICH2A 模拟I/O包 电压为27点4伏直流电
【功能描述】

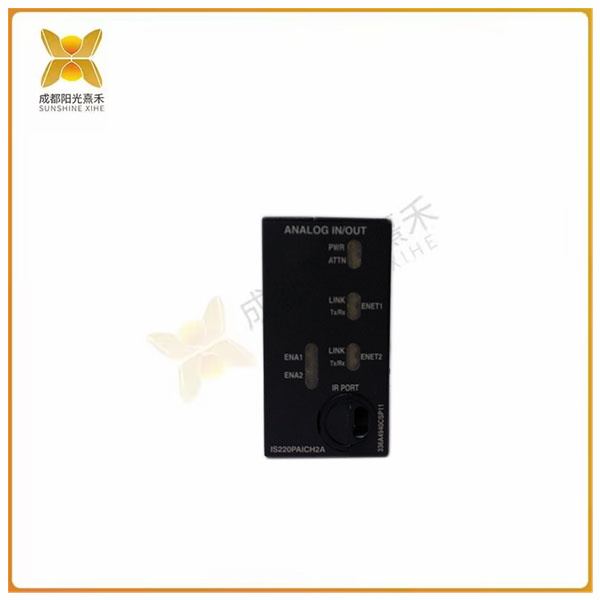

该IS220PAICH2A型号被描述为模拟I/O包，已获准用于危险和非危险场所。在模型的正面，有四个指标。底部还有一个端口，被描述为I/O端口。PAIC电池组可以使用多种电压，PAIC电池组的最小电压为27点4伏直流电。
由于IS220PAICH2A套件能够在许多地点使用，因此获得了各种认证，其中一些是危险场所、一区二组IIC、一类二区A、B、C、D组和ATEX二区、IIC组和非危险场所。以下认证用于地点，UL E207685和UL DEMKO 12 ATEX 1114875X，请注意UL E207685认证在许多地点使用。
IS220PAICH2A单元可以使用三种型号，即IS200STAIH1A和IS200STAIH2A以及IS20TBAIH1C型号。所有这些型号都被称为输入输出端子板。
PAIC I/O包的典型位置将位于两个可用VME机架之一中，即13或21个插槽机架。请注意，该装置通常与三重模块化冗余架构系统一起使用。TMR系统有一个单独的控制模块、I/O网络和主处理器卡。
>>>>>型号:IS220PAICH2A 模拟I/O包 电压为27点4伏直流电
【英文介绍】
When were the IS215VCMIH2C and Mark VI control systems first released?
The Mark VI was one of the last Speedtronic series to be released by GE. From the late 1960s (MKI) to the 1990s (MKVI and MKVIe), this series of gas turbine/steam turbine management systems was developed in many iterations with the main goal of improving the efficiency of turbine systems through reliable management, good design and the best emerging technologies. The IS215VCMIH2C was released by GE Energy and GE Industrial Solutions during the production of the Mark VI control system.
Product description
The IS215VCMIH2C is designed as a VME communication card in the GE Mark VI turbine control system and is essential for the correct functioning of the entire system. The VCMI VME communication board allows the input/output (I/O) card to communicate with other I/O cards mounted on the VME backplane, expansion rack mounted I/O cards, I/O backup protection module, triple redundancy control module, and main processor module.
The IS215VCMIH2C card is also broadly referred to as the VME bus master controller. The PCB connects the communication between the I/O board and the controller. It also acts as a communication interface for the System Control Network (IONet).
The IS215VCMIH2C has four built-in port connections placed on its front panel. These include an RS-232C serial port, Type D plug connectors, and three IONet 10Base2 Ethernet ports. Each IONet connector is associated with three LED indicators labeled TX/RX/CD. The board has additional LED indicators labeled Status, Failure, Run, and 1, 2, 4, and 8. The former is located above the reset switch (button), while the latter is located directly below the serial port.
