>>>>>型号: IS215VPROH1BD 紧急涡轮机保护模块 接受热电偶和模拟输入
【功能描述】
IS215VPROH1BD是为Mark VI系统制造的模块。Mark VI是Speedtronic系列的燃气轮机/蒸汽轮机管理系统，由GE开发了30多年，专注于创建可靠和高效的系统。

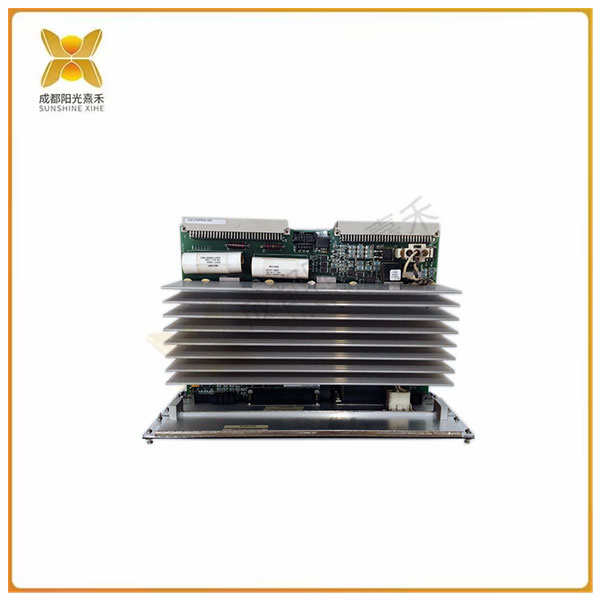

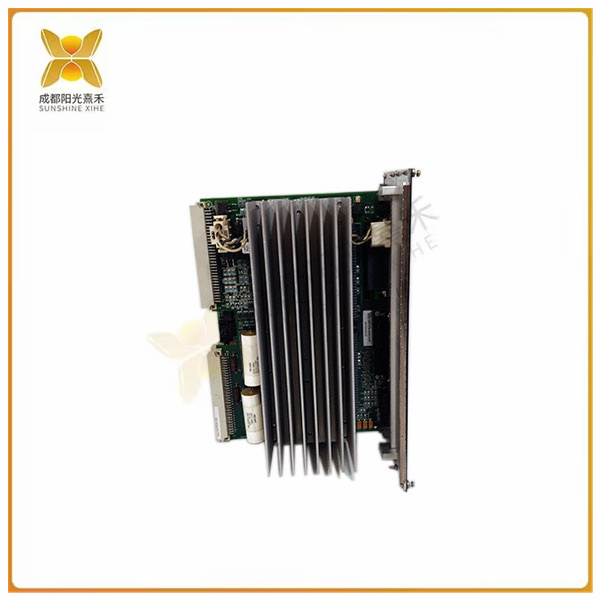

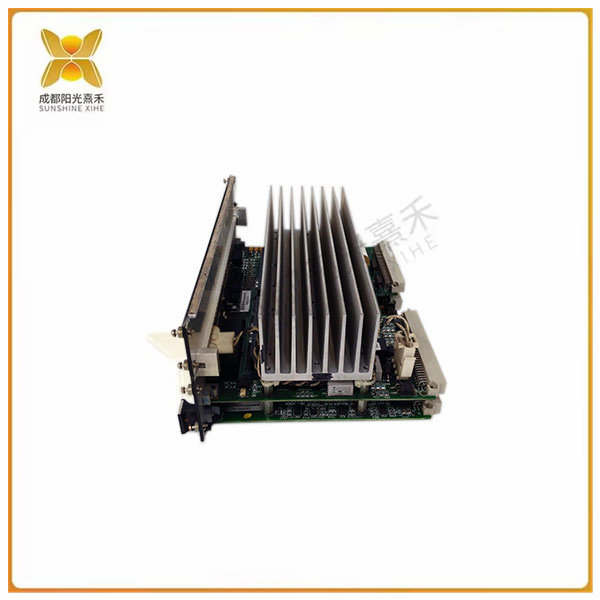

该IS215VPROH1BD用作紧急涡轮机保护模块。该IS215VPROH1BD提供速度差检测和备份同步检查保护。该板接受热电偶和模拟输入。该模块有两个电路板堆叠在一起。顶板是一块IS200VPRW板，通过螺纹固定在支架上的四个螺钉连接安装到下板上。该板由集成电路、变压器、多个晶体管以及电阻器、电容器和二极管组成。电容器包括由聚酯乙烯基制成的电容器。电阻器有时由碳复合材料制成。该板具有多个电感线圈和许多连接器，包括插头。右前侧有一个散热器。
IS215VPROH1BD的底板有两个背板。它具有电容器和电阻器以及多个集成电路。这包括振荡芯片。顶板的支架放置在板的边缘附近。
IS215VPROH1BD通过TREG板控制脱扣螺线管。控制器中的应用软件用于启动这些脱扣螺线管的测试。这些也可以手动跳闸。
IS215VPROH1BD由面板构成。面板具有LED指示灯、电源开关、电缆连接器和以太网连接器。该面板使用螺钉连接到电路板。有关此模块的更多信息，请参阅原始设备制造商的出版物。
>>>>>型号: IS215VPROH1BD 紧急涡轮机保护模块 接受热电偶和模拟输入
【英文介绍】
When were the IS215VCMIH2C and Mark VI control systems first released?
The Mark VI was one of the last Speedtronic series to be released by GE. From the late 1960s (MKI) to the 1990s (MKVI and MKVIe), this series of gas turbine/steam turbine management systems was developed in many iterations with the main goal of improving the efficiency of turbine systems through reliable management, good design and the best emerging technologies. The IS215VCMIH2C was released by GE Energy and GE Industrial Solutions during the production of the Mark VI control system.
Product description
The IS215VCMIH2C is designed as a VME communication card in the GE Mark VI turbine control system and is essential for the correct functioning of the entire system. The VCMI VME communication board allows the input/output (I/O) card to communicate with other I/O cards mounted on the VME backplane, expansion rack mounted I/O cards, I/O backup protection module, triple redundancy control module, and main processor module.
The IS215VCMIH2C card is also broadly referred to as the VME bus master controller. The PCB connects the communication between the I/O board and the controller. It also acts as a communication interface for the System Control Network (IONet).
The IS215VCMIH2C has four built-in port connections placed on its front panel. These include an RS-232C serial port, Type D plug connectors, and three IONet 10Base2 Ethernet ports. Each IONet connector is associated with three LED indicators labeled TX/RX/CD. The board has additional LED indicators labeled Status, Failure, Run, and 1, 2, 4, and 8. The former is located above the reset switch (button), while the latter is located directly below the serial port.
