>>>>>型号:IS215UCVGH1A 电路板组件 有五个版本的 UCV 控制器
【功能描述】
IS215UCVGH1A是GE为Mark VI系统设计的带有面板的电路板组件。MKVI 是通用电气作为 Speedtronic 系列的一部分发布的蒸汽和燃气轮机管理系统。 Speedtronic 系列始于 1969 年，一直持续到 1990 年代 Mark VI/Mark VIe 发布。
MKVI 有五个版本的 UCV 控制器。IS215UCVGH1A是控制器的单插槽版本。任何以前的控制器都可以直接由IS215UCVGH1A替换。如果主板更换了早期版本的控制器，则不需要升级背板。IS215UCVGH1A安装到 VME 机架中。
该IS215UCVGH1A采用英特尔的超低压赛扬 650 处理器芯片。该芯片具有 128MB 的 SDRAM 和 128 MB 的闪存。该板有一个前面板。面板有一个复位开关，后跟一个 SVGA 监控端口。有一个键盘/鼠标端口和两个 COM 端口（并排，标记为 1 和 2。该板有两个以太网端口堆叠在一起。它们标记为 LAN1 和 LAN2。有两个独立的 USB 连接器、四个 LED 指示灯和一个面板开口。
IS215UCVGH1A板由多个辅助板组成。有些地方有对峙，如果添加辅助设备，可以接受辅助设备。该板有一个背板。电路板表面有电容器、电感线圈、晶体振荡器、振荡芯片、跳线开关、集成电路等。
>>>>>型号:IS215UCVGH1A 电路板组件 有五个版本的 UCV 控制器
【英文介绍】
The IS215UCVGH1A is a circuit board assembly with a panel designed by GE for the Mark VI system. MKVI is a steam and gas turbine management system released by General Electric as part of the Speedtronic family. The Speedtronic series began in 1969 and continued until the release of Mark VI/Mark VIe in the 1990s.
The MKVI has five versions of the UCV controller. The IS215UCVGH1A is a single-slot version of the controller. Any previous controller can be replaced directly by the IS215UCVGH1A. If the motherboard has replaced an earlier version of the controller, there is no need to upgrade the backplane. IS215UCVGH1A Installed in the VME rack.

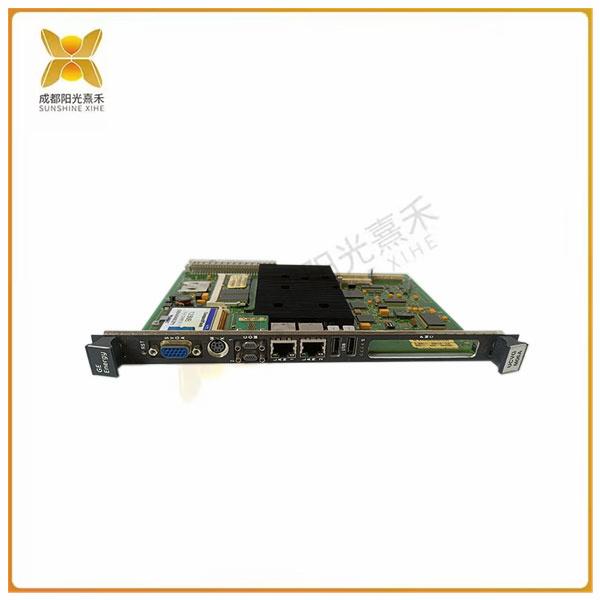

The IS215UCVGH1A uses Intel's ultra-low voltage Celeron 650 processor chip. The chip has 128MB of SDRAM and 128MB of flash memory. The board has a front panel. The panel has a reset switch followed by an SVGA monitoring port. There is a keyboard/mouse port and two COM ports (side by side, labeled 1 and 2. The board has two Ethernet ports stacked together. They are labeled LAN1 and LAN2. There are two separate USB connectors, four LED indicators, and a panel opening.

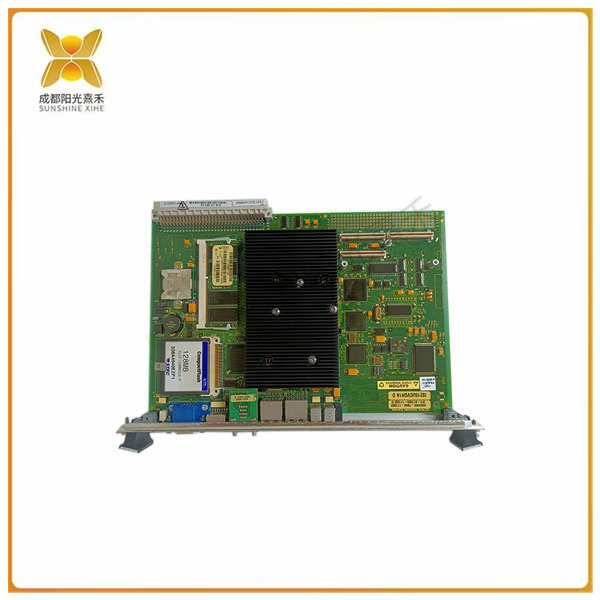

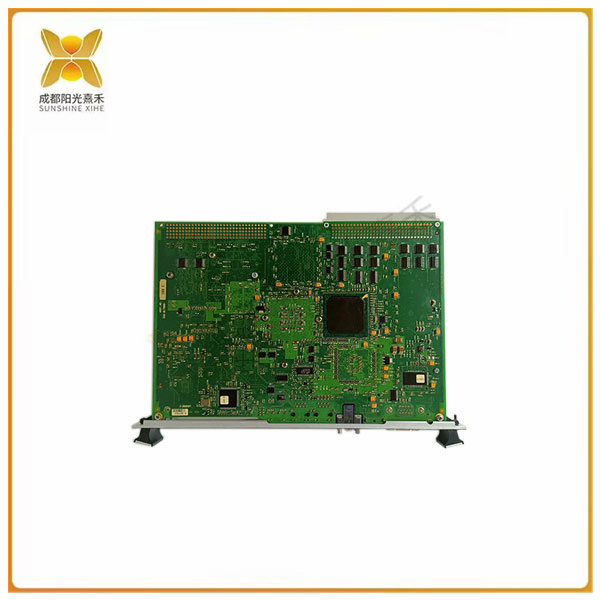

The IS215UCVGH1A board consists of a plurality of auxiliary boards. There are places where there are stand-offs, and if auxiliary devices are added, auxiliary devices can be accepted. The board has a backplane. The surface of the circuit board has capacitors, inductors, crystal oscillators, oscillating chips, jumper switches, integrated circuits, etc.
