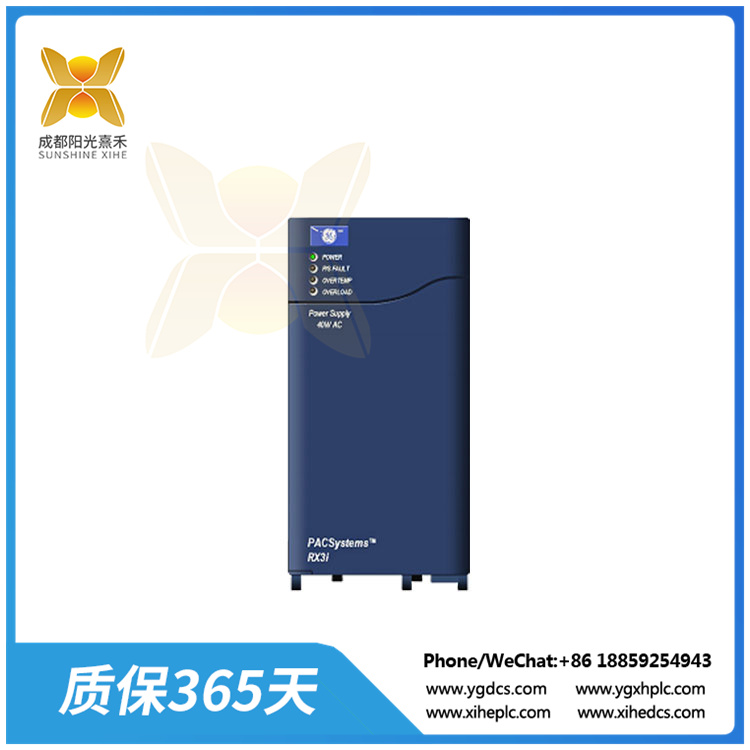

>>>>>型号:IC695PSA040 电源模块
【功能描述】
IC695PSA040是一款电源模块。
该模块可与交流或直流输入电源配合使用，适用于120/240伏交流或125伏直流的电源环境，其工作电压范围为85~264伏交流电或100~300伏直流电。
IC695PSA040电源模块是一个40瓦的电源，提供三个主要输出：+3.3 VDC供具有IC695目录号的RX3i模块内部使用，+5.1伏直流电，以及+24 VDC继电器，用于为输出继电器模块上的电路供电。
这款电源模块是专为PACSystem RX3i设计的，但在通用背板中一次只能安装一个IC695PSA040电源，并且与其他RX3i电源不兼容，无论是在增加容量还是冗余模式下。此外，该电源模块的输入功率（满载时最大）
为70瓦，具有250 VAC连续的隔离（背板输入）能力，并且在1500伏交流电下能维持1分钟的纹波/噪声。
接线端子方面，每个端子接受一根14 AWG至22 AWG电线，每个端子的电流为6安培。在菊花链配置中，最多可以连接4个PSA040电源模块。
总的来说，IC695PSA040是一个功能全面且灵活的电源模块，能够满足PACSystem RX3i系统的各种电源需求。然而，由于其在背板中的安装限制以及与其他RX3i电源的不兼容性，用户在配置系统时需要特别注意。
同时，其高输入功率和优秀的隔离能力也确保了电源的稳定性和安全性。
>>>>>型号:IC695PSA040 电源模块
【英文介绍】
The IC695PSA040 is a power module.
The module can be used with AC or DC input power supplies, suitable for 120/240 volt AC or 125 volt DC power supply environments, and its operating voltage range is 85 to 264 volts AC or 100 to 300 volts DC.
The IC695PSA040 power module is a 40-watt power supply that provides three main outputs: +3.3 VDC for internal use in the RX3i module with the IC695 catalog number, +5.1 VDC, and +24 VDC relay for
powering the circuits on the output relay module.
The PSU is designed for the PACSystem RX3i, but only one IC695PSA040 power supply can be installed at a time in the universal backplane, and is not compatible with other RX3i power supplies, either in
increased capacity or redundancy mode. In addition, the PSU has an input power (maximum at full load) of 70 watts, a continuous isolation (backplane input) capability of 250 VAC, and maintains ripple/noise
for 1 minute at 1500 VAC AC.
For terminals, each terminal receives a 14 AWG to 22 AWG wire with a current of 6 amps per terminal. In the Daisy chain configuration, a maximum of four PSA040 power modules can be connected.
Overall, the IC695PSA040 is a fully functional and flexible power module that can meet the various power needs of PACSystem RX3i systems. However, due to its installation limitations in the backplane and incompatibility with other RX3i power supplies, users need to pay special attention when configuring the system. At the same time, its high input power and excellent isolation capability also ensure the stability and safety of the power supply.
