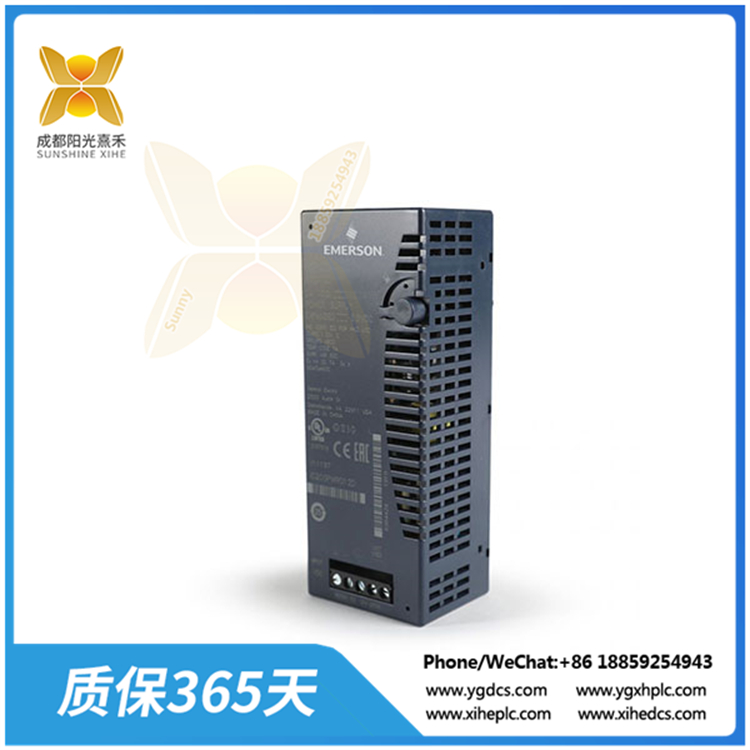

IC200PWR001 提供背板电源

>>>>>型号:IC200PWR001 提供背板电源

【功能描述】

IC200PWR001是一个24VDC电源， 为CPU、NIU和I/O模块提供背板电源。

IC200PWR001可以通过3.3伏和5伏输出提供最大1.5安培的输出电流,

3.3伏输出最高0.25安培。如果IC200PWR001安装在CPU或NIU上,则可将其视为站的主电源。IC200PWR001安装在电源升压器托架 上时,也可用

作补充电源。

IC200PWR001的输入电压为18至30VDC, 标称电压为24VDC,输入功率为11瓦。IC200PWR001的保持时间为10ms, 浪涌电流在24VDC时为20A,在30VDC时为25A。

IC200PWR001的输出电压为5VDC, 3.3VDC。 最大总输出电流不应超过1.5a。IC 200 PWR 001提供短路、过载和反极性保护。接线时，DC-必须接地至机架/大地。

DC 接地到电源的内部框架,这意味着不应该使用浮动电源。

>>>>>型号:IC200PWR001 提供背板电源

【英文介绍】

The IC200PWR001 is a 24VDC power supply that provides backplane power for CPU, NIU, and I/O modules.

The IC200PWR001 can provide a maximum output current of 1.5 amps through 3.3 volts and 5 volts outputs.

3.3 volts output up to 0.25 amps. If IC200PWR001 is installed on a CPU or NIU, it can be considered the main power supply for the station. The IC200PWR001

is also available when mounted on a power booster bracket

To supplement the power supply.

The IC200PWR001 has an input voltage of 18 to 30VDC, a nominal voltage of 24VDC, and an input power of 11 watts. IC200PWR001 has a hold time of 10ms and

an inrush current of 20A at 24VDC and 25A at 30VDC. The output

voltage of IC200PWR001 is 5VDC, 3.3VDC. The maximum total output current should not exceed 1.5a. The IC 200 PWR 001 provides short circuit, overload and

reverse polarity protection. When connecting cables, the DC- must be

grounded to the rack/ground. The DC is grounded to the internal frame of the power supply, which means that floating power should not be used.
