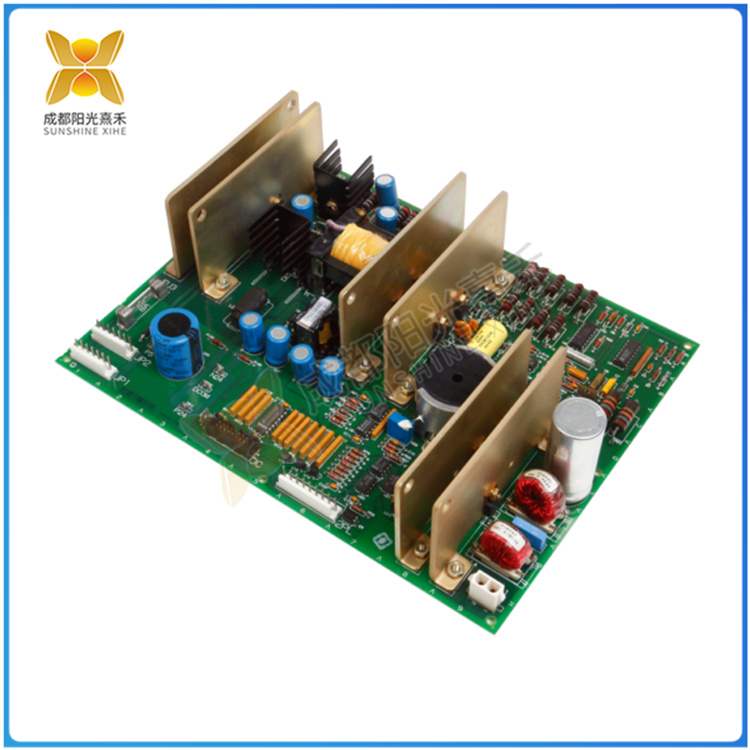

DS200FGPAG1A 门脉冲放大器板

>>>>>型号:DS200FGPAG1A 门脉冲放大器板 【功能描述】 DS200FGPAG1A是一款门脉冲放大器板。该板专为需要精确可靠的门脉冲放大的应用场合设计,旨在增强门脉冲信号的强度和质量,从而精确控制和监控工业系统。DS200FGPAG1A具有三个主要功能:SCR状态监控、开关电源和栅极驱动器。其中,栅极驱动器用于为SCR桥的一相提供栅极电源;开关电源功

电话/Phone:18859254943 (微信同号)

邮箱/Email:sales@ygdcs.com

QQ:3561040004

产品详情

>>>>>型号:DS200FGPAG1A 门脉冲放大器板



【功能描述】



DS200FGPAG1A是一款门脉冲放大器板。

该板专为需要精确可靠的门脉冲放大的应用场合设计,旨在增强门脉冲信号的强度和质量,从而精确控制和监控工业系统。

DS200FGPAG1A具有三个主要功能:SCR状态监控、开关电源和栅极驱动器。其中,栅极驱动器用于为SCR桥的一相提供栅极电源;开关电源功能则是将接收到的交流电压转换为门控和状态功能所需的DC电压;

而SCR状态监控功能则是从连接的FHVAs积累电池电压信息,并通过光学串行数据链路将信息传递给LCI控制器。

DS200FGPAG1A还具有内置于电路板中的栅极驱动器和状态电路,以及15个光纤连接器。其输入电压范围为90-260 VAC,工作频率范围为47-63 Hz。它还具有极性保护、电压/频率非正常范围保护以及供

电故障保护等功能,确保在工业环境中稳定可靠地运行。

DS200FGPAG1A是一款功能强大、性能稳定的电子元件,广泛应用于工业自动化控制系统中,对于提升系统的稳定性和控制精度具有重要作用。



>>>>>型号:DS200FGPAG1A 门脉冲放大器板


英文介绍



The DS200FGPAG1A is a gate pulse amplifier board.

Designed for applications that require accurate and reliable gate pulse amplification, the board is designed to enhance the strength and quality of the gate pulse signal for precise control and

monitoring of industrial systems.

The DS200FGPAG1A has three main functions: SCR status monitoring, switching power supply, and gate driver. The grid driver is used to provide grid power for a phase of the SCR bridge.

 The switching power supply function is to convert the received AC voltage to the DC voltage required for gating and status functions. The SCR condition monitoring function accumulates

battery voltage information from the connected FHVAs and passes the information to the LCI controller via an optical serial data link.

The DS200FGPAG1A also features a gate driver and status circuit built into the circuit board, as well as 15 fiber optic connectors. The input voltage range is 90-260 VAC and the operating

frequency range is 47-63 Hz. It also features polarity protection, voltage/frequency out-of-range protection, and power supply fault protection to ensure stable and reliable operation in industrial environments.

DS200FGPAG1A is a powerful and stable electronic component that is widely used in industrial automation control systems and plays an important role in improving system stability and control accuracy.

>>>>>型号:DS200FGPAG1A 门脉冲放大器板
