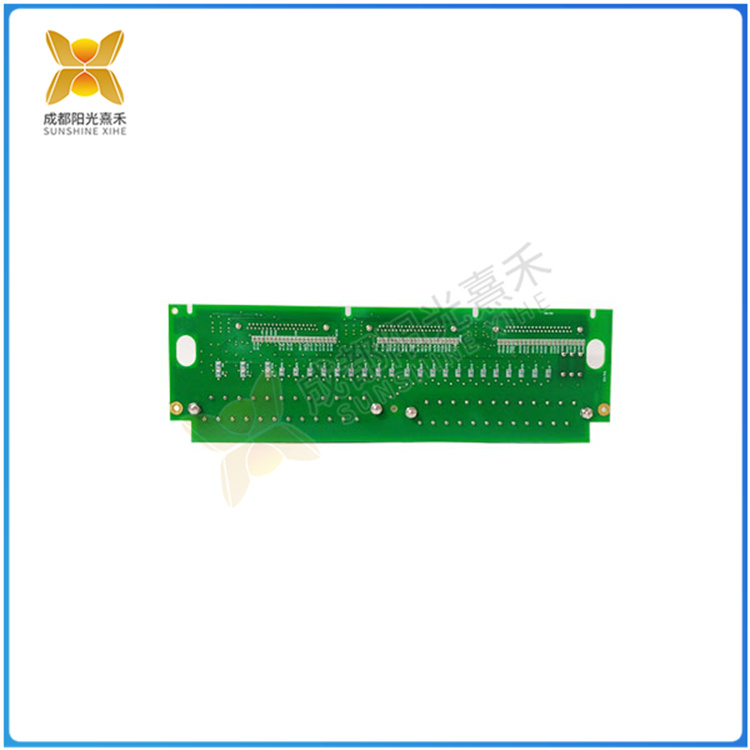

>>>>>型号:IS200TBCIS2CCD 接触输入设备
【功能描述】
IS200TBCIS2CCD是一种带有组隔离端子板的接触输入设备，可以接收24个干接点输入，并同时连接到两个屏障型端子块。
该设备可以与多种控制系统一起使用，包括Mark VI、Mark VIe和Mark VIeS。在Mark VIeS控制系统中，TBCIS1C、TBCIS2C和TBCIS3C型号都通过了安全认证。
IS200TBCIS2CCD可以与Mark VIe IS220PDIA和Mark VIeS IS200YDIA型号以及所有与PDIA和YDIA单元相关的型号一起使用。
在系统配置方面，IS200TBCIS2CCD可以用于单工和三模冗余（TMR）系统。
在TMR系统中，电缆将使用JS1、JT1和JR1连接器连接到I/O处理器。
在Simplex系统中，I/O处理器将仅通过JR1连接器连接。对于Mark VIe/VIeS系统，相关的I/O包将直接插入TBCI模型，然后连接到侧面安装支架上。
>>>>>型号:IS200TBCIS2CCD 接触输入设备
【英文介绍】
The IS200TBCIS2CCD is a contact input device with a set of isolated terminal boards that can receive 24 dry contact inputs and connect
to two barrier type terminal blocks simultaneously.
The device can be used with a variety of control systems, including Mark VI, Mark VIe and Mark VIeS. In the Mark VIeS control system,
the TBCIS1C, TBCIS2C and TBCIS3C models have all passed safety certification.
The IS200TBCIS2CCD can be used with the Mark VIe IS220PDIA and Mark VIeS IS200YDIA models and all models associated with PDIA
and YDIA units.
In terms of system configuration, the IS200TBCIS2CCD can be used in simplex and three-mode redundancy (TMR) systems.
In a TMR system, the cable will be connected to the I/O processor using JS1, JT1, and JR1 connectors.
In a Simplex system, the I/O processor will only be connected via the JR1 connector. For Mark VIe/VIeS systems, the associated I/O
packages are inserted directly into the TBCI model and then attached to the side mount bracket.
