3500/15E  164949-01     | IC200GBI001 | 交流/直流电源模块|

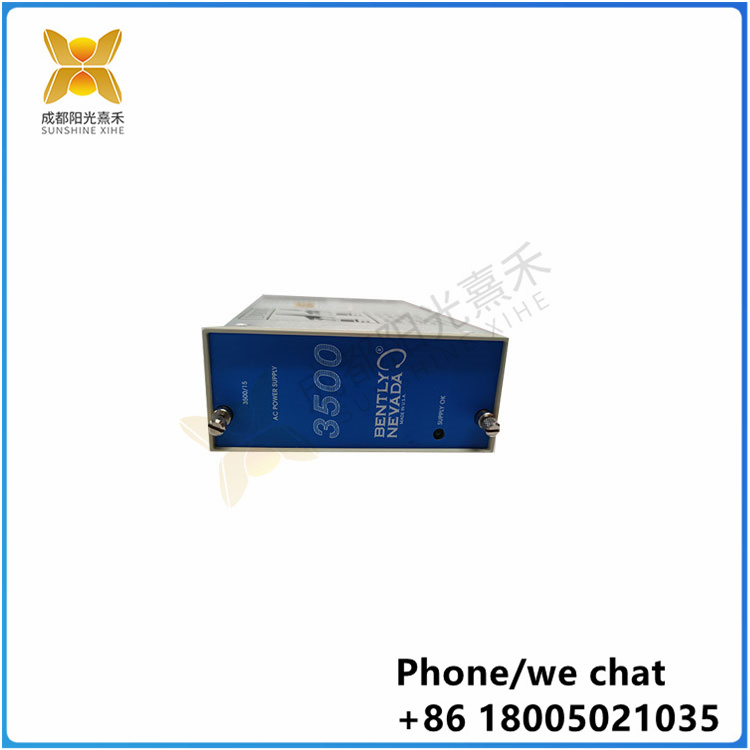

  3500/15E 164949-01 是一款由本特利（Bently Nevada）生产的交流/直流电源模块，它具有以下特性：

模块化设计：这是一个半高模块，必须安装在机架左侧的指定插槽中 。

冗余电源支持：当两个电源模块安装在机架中时，下面的电源模块作为主电源，上部的电源模块作为备用电源 。

：3500/15E 电源模块可以接受多种输入电压，并将其转换为其他 3500 模块可以接受的电压 。

输入电压范围：通用交流输入电压为 110 至 220 Vac，85 至 264 VAC RMS，120 至 373 VAC；高压直流 (HVDC) 输入电压为 88 至 140 Vdc 。

工作温度范围：-30°C 至 +65°C 。

应用领域：广泛应用于工业自动化和控制领域，尤其是在机械状态监控系统中

安装在机架左侧的指定槽位。The3500

机架可以包含一个或两个电源

combinationsof ACandDC。这两种供应方式都可以实现电力供应。

当两个电源安装在机架上时，另一个电源安装在机架上

较低的槽作为主要供应，和其他在上部

插槽作为备用电源。如果安装，第二个电源是

thebackupfortheprimary。

拔插电源模块不允许

只要是第二个电源，就会中断设备的运行安装。

The3500/15PowerSupply acceptsawiderangeofinput

电压并将其转换为可接受的电压

other3500modules。下面简要powersuppliesareavailable

3500系列机械保护系统:

n LegacyACPower

n通用交流电源

n高压直流电源

n低压直流电源

The 3500/15E 164949-01 is an AC/DC power module manufactured by Bently Nevada with the following features:

Modular design: This is a semi-tall module that must be installed in a designated slot on the left side of the rack.

Redundant power supply: When two power modules are installed in a rack, the lower power module acts as the active power supply, and the upper power module acts as the standby power supply.

Power conversion capability: The 3500/15E power module can accept a variety of input voltages and convert them to voltages that other 3500 modules can accept.

Input voltage range: General AC input voltage is 110 to 220 Vac, 85 to 264 VAC RMS, 120 to 373 VAC; High voltage direct current (HVDC) input voltages range from 88 to 140 Vdc.

Operating temperature range: -30°C to +65°C.

Applications: Widely used in the field of industrial automation and control, especially in mechanical condition monitoring systems

Install it in the specified slot on the left of the rack. The3500

The rack can contain one or two power supplies

combinationsof ACandDC. Both of these supply modes can make electricity available.

When two power supplies are installed on the rack, the other power supply is installed on the rack

The lower slot serves as the main supply, and the others are in the upper part

The slot serves as a backup power supply. If installed, the second power supply is

thebackupfortheprimary.

Removing and inserting a power module is not allowed

As long as it is a second power supply, it will interrupt the operation and installation of the device.

The3500/15PowerSupply acceptsawiderangeofinput

Voltage and convert it to an acceptable voltage

other3500modules. Here is a brief powersuppliesareavailable

3500 Series Mechanical Protection System:

n LegacyACPower

n Universal AC power supply

n High voltage DC power supply

n Low voltage DC power supply
