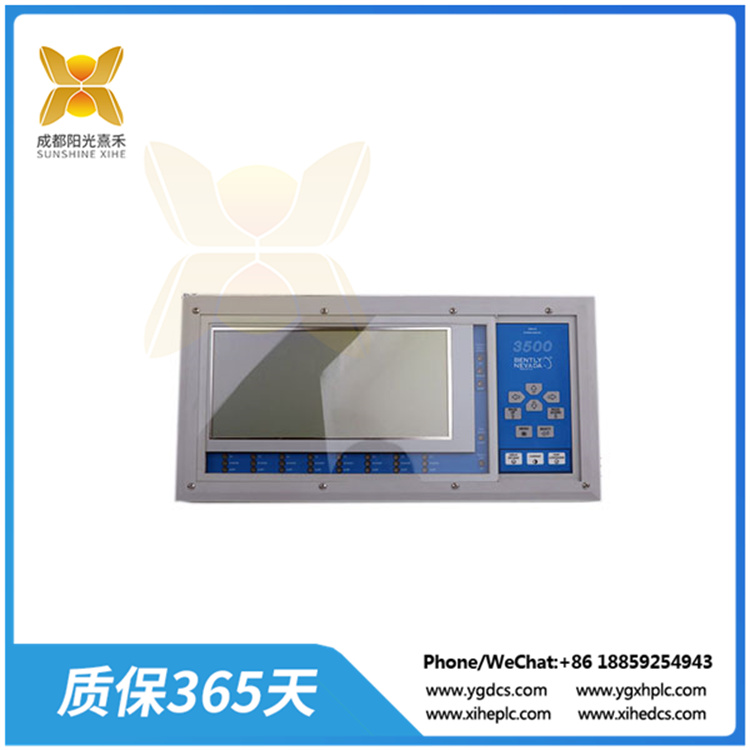

>>>型号:3500/93 135799-01 高性能显示接口模块 用于工业自动化和控制系统
【功能描述】
3500/93 135799-01 显示接口模块是一款高性能显示接口模块，专为3500机械保护系统而设计。该模块主要用于提供本地或远程的视觉指示，以便实时查看3500机架中存储的所有机械保护系统信息。
3500/93 135799-01这款显示接口模块符合美国石油学会标准670，确保了其在石油和其他工业应用中的高可靠性和稳定性。通过该模块，用户可以方便地访问和监视所有通道、监视器、继电器模块、键相模块或转速计模块的数据，
这些数据都被系统地列在系统事件列表中，便于用户进行分析和诊断。
3500机架配置软件被用于设置3500/93系统显示，使得用户可以根据实际需求定制显示界面和参数设置。每个3500机架最多可以支持两台显示器，每台显示器需要一个空闲插槽来插入与其对应的DIM（Display Interface Module）。
这样的设计使得显示接口模块在机架中的布局更加灵活和方便。
在连接方面，DIM和显示器之间的电缆连接可以通过3500机架的正面或机架背面的I/O模块完成，即使在显示器不是正面安装的情况下也是如此。这种设计使得安装和维护变得更加便捷。此外，对于需要电缆长度超过100英尺的应用，
建议使用外部电源和电缆适配器，以确保信号的稳定传输。
总的来说，3500/93 135799-01显示接口模块是一款功能强大、易于使用的设备，能够为用户提供清晰、实时的机械保护系统信息，有助于提高设备的运行效率和可靠性。无论是在石油、化工、电力还是其他工业领域，它都是一个值得考虑的优质选择。
>>>>型号:3500/93 135799-01 高性能显示接口模块 用于工业自动化和控制系统
【英文介绍】
The 3500/93 135799-01 Display Interface module is a high-performance display interface module designed for the 3500 mechanical protection system. The module is mainly used to provide local or remote visual indication
to view all mechanical protection system information stored in 3500 racks in real time.
3500/93 135799-01 This display interface module complies with API Standard 670, ensuring high reliability and stability in petroleum and other industrial applications. Through this module, the user can easily access and monitor
the data of all channels, monitors, relay modules, key phase modules or tachometer modules, which are systematically listed in the system event list for easy analysis and diagnosis.
The 3500 rack configuration software is used to configure the 3500/93 system display, allowing users to customize the display interface and parameter Settings according to actual requirements. Each 3500 rack can support up to
two displays, each of which requires a free slot to insert its corresponding DIM (Display Interface Module). This design makes the layout of the display interface module in the rack more flexible and convenient.
In terms of connectivity, the cable connection between the DIM and the display can be done via an I/O module on the front or back of the 3500 rack, even when the display is not front-mounted. This design makes installation and
maintenance easier. In addition, for applications requiring cable lengths greater than 100 feet, an external power supply and cable adapter are recommended to ensure stable transmission of the signal.
Overall, the 3500/93 135799-01 Display interface module is a powerful, easy-to-use device that provides users with clear, real-time information about the mechanical protection system, helping to improve the efficiency and reliability
of the operation of the device. Whether it is in petroleum, chemical, power or other industrial fields, it is a quality option worth considering.
