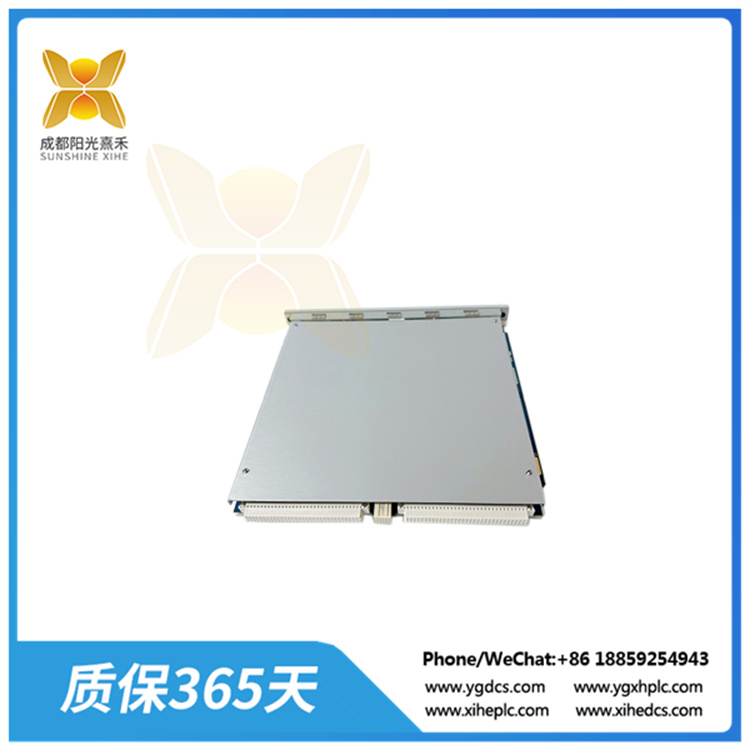

288055-01 瞬态数据接口(TDI)模块 用于工业自动化和控制系统

>>>型号:288055-01 瞬态数据接口(TDI)模块 用于工业自动化和控制系统 【功能描述】 288055-01 瞬态数据接口(TDI)模块是一款高性能的数据采集和监控设备,专为与3500监控系统配合使用而设计。该模块结合了3500/20框架接口模块(RIM)的功能,并具有通信数据收集功能,如TDXnet等处理器所具备的功能。在3500机架中,TDI位于与电源相邻的插槽

电话/Phone:18859254943 (微信同号)

邮箱/Email:sales@ygdcs.com

QQ:3561040004

产品详情

>>>型号:288055-01 瞬态数据接口(TDI)模块 用于工业自动化和控制系统



【功能描述】



288055-01 瞬态数据接口(TDI)模块是一款高性能的数据采集和监控设备,专为与3500监控系统配合使用而设计。该模块结合了3500/20框架接口模块(RIM)的功能,并具有通信数据收集功能,如TDXnet等处理器所具备的功能。

在3500机架中,TDI位于与电源相邻的插槽中,主要用于持续收集稳态和瞬态动态(波形)数据,并通过以太网链路将这些数据传输到主机软件。这种能力使得TDI成为设备状态监控和故障诊断的关键工具。此外,TDI不仅具备传统的

静态数据收集功能,还可以使用可选的通道启用磁盘来记录动态、高分辨率的瞬态数据,从而提供更详细和深入的设备运行信息。

该模块的特点还包括高精度的振动监测功能,可以实时监测设备的振动情况,包括振动速度、加速度和位移等参数。通过采集和分析这些振动数据,模块能够识别和诊断机械故障,如轴承磨损、不平衡、松动等问题,并及时发出警报

或触发维护操作。此外,其高可靠性和稳定性确保了工业环境中的长期运行,有效监测和保护关键设备的运行状态。

在配置方面,该模块提供了多种选项以满足不同应用需求,如输入通道数、采样率和报警设置等。同时,它支持与其他监控系统或控制系统进行数据交互和集成,从而实现了更全面的设备状态监控和管理。

总的来说,288055-01 瞬态数据接口(TDI)模块是一款功能强大、性能稳定的设备状态监测工具,广泛应用于各种工业领域,为设备的安全运行和高效生产提供了有力保障。


>>>>型号:288055-01 瞬态数据接口(TDI)模块 用于工业自动化和控制系统


英文介绍



The 288055-01 Transient Data Interface (TDI) module is a high-performance data acquisition and monitoring device designed for use with 3500 monitoring systems. The module combines the functionality of a 3500/20

Framework Interface Module (RIM) with communication data collection capabilities such as those found in processors such as TDXnet.

In 3500 racks, the TDI is located in a slot adjacent to the power supply and is primarily used to continuously collect steady-state and transient dynamic (waveform) data and transfer this data to the host software over an

 Ethernet link. This capability makes TDI a critical tool for device condition monitoring and fault diagnosis. In addition, TDI not only has traditional static data collection capabilities, but also enables the use of optional

 channel enabled disks to record dynamic, high-resolution transient data, providing more detailed and in-depth information about device operation.

The module also features a high-precision vibration monitoring function, which can monitor the vibration of the equipment in real time, including vibration speed, acceleration and displacement parameters. By collecting

 and analyzing these vibration data, the module is able to identify and diagnose mechanical failures, such as bearing wear, unbalance, loosening and other issues, and issue timely alarms or trigger maintenance operations.

In addition, its high reliability and stability ensure long-term operation in industrial environments, effectively monitoring and protecting the operating status of critical equipment.

In terms of configuration, the module provides a variety of options to meet different application requirements, such as the number of input channels, sampling rate and alarm Settings. At the same time, it supports data

interaction and integration with other monitoring systems or control systems, thus achieving a more comprehensive monitoring and management of equipment status.

Overall, the 288055-01 Transient Data Interface (TDI) module is a powerful and stable equipment condition monitoring tool, which is widely used in various industrial fields, and provides a strong guarantee for the safe

operation and efficient production of equipment.

>>>>型号:288055-01 瞬态数据接口(TDI)模块 用于工业自动化和控制系统
