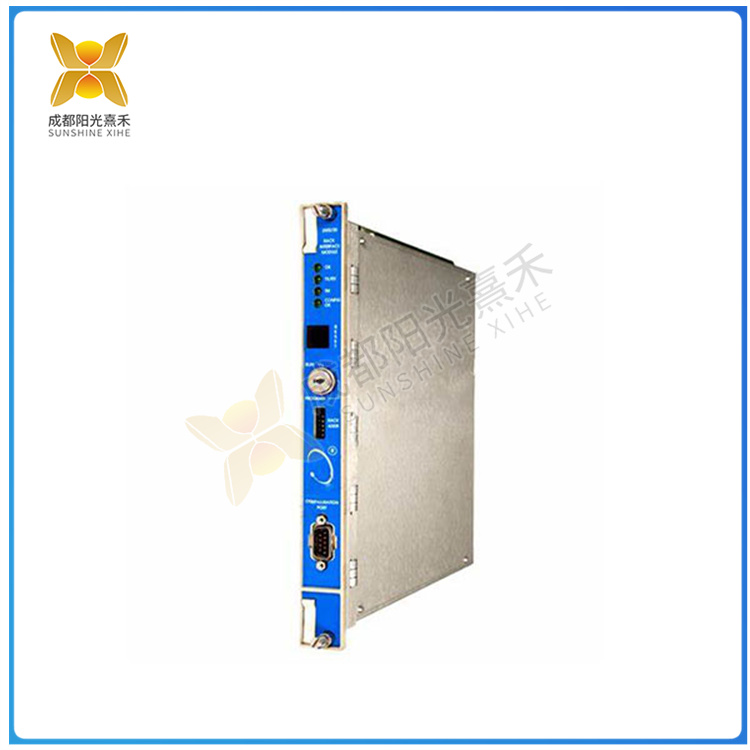

>>>>>型号:3500/22-01-02-00 模拟模块输入
【功能描述】
3500/22-01-02-00 强烈建议将双绞屏蔽仪表电缆用于模拟模块输入或输出信号连接。
屏蔽层的正确接地也很重要。对于最大值电气噪声抑制，电缆屏蔽层应仅在电缆的一端接地。对于输入模块，通常最好将噪声最大的端接地环境（通常是现场设备端）。3500/22-01-02-00 对于输出模块，模块端接地。
从用户 3500/22-01-02-00 设备连接到模拟模块时，将端子拧在可拆卸的 20 端子连接器块安装在模块的前面。实际终端使用的模块在各个模块的规格中显示。
>>>>>型号:3500/22-01-02-00 模拟模块输入
【英文介绍】
3500/22-01-02-00 A twisted-shielded instrument cable is strongly recommended for analog module input or output signal connection.
Proper grounding of the shield is also important. For maximum electrical noise suppression, the cable shield should be grounded at only one end of the cable. For input modules, it is usually best to ground the noisiest end to the environment (usually the field device end). 3500/22-01-02-00 For the output module, the module terminal is grounded.
When connecting a device from User 3500/22-01-02-00 to the analog module, screw the terminals onto the removable 20-terminal connector block mounted on the front of the module. The modules used by the actual terminal are shown in the specifications of each module.
>>>>>型号:3500/22-01-02-00 模拟模块输入
