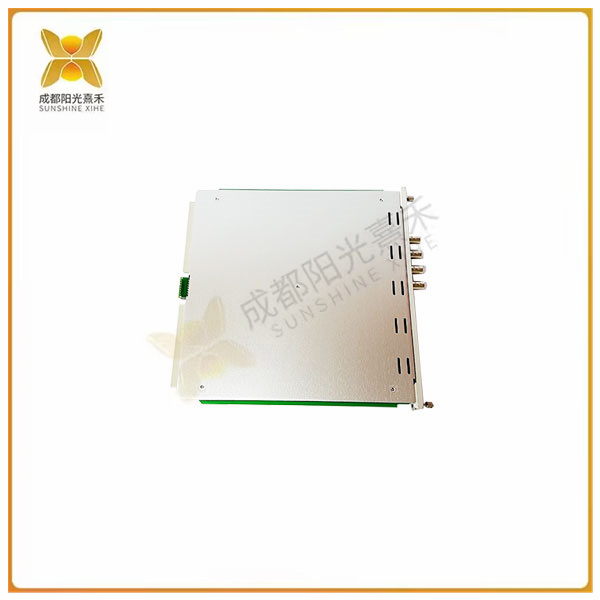

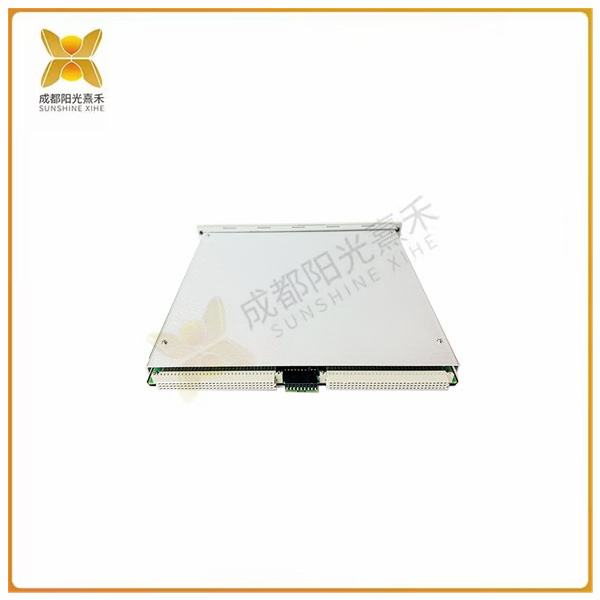

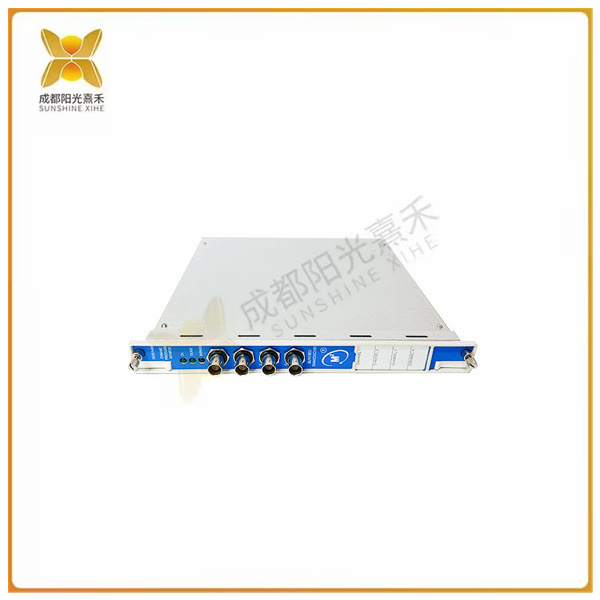

>>>>>型号:140734-05 动态压力监测器 四通道监测器
【功能描述】
3500/64M动态压力监测器是一个单槽，四通道监测器，从高温接受输入压力传感器，并使用此输入来驱动警报。的监视器每个通道的一个测量变量是带通动态压力。
您可以使用3500机架配置软件进行以下操作配置带通角频率与一个附加陷波滤波器。监视器提供一个记录器输出控制系统的应用。
主要用途为3500/64M动压
监视器是提供以下内容:
l连续比对保护机器根据配置的告警监控参数驱动警报的设定值
l操作所需的基本机器信息维修人员
每个通道，根据配置，限制其输入信号产生的各种参数称为被测变量。您可以配置警报和危险设定值每个活跃的测量变量。
>>>>>型号:140734-05 动态压力监测器 四通道监测器
【英文介绍】
The 3500/64M dynamic pressure monitor is a single-slot, four-channel monitor that accepts an input pressure sensor from high temperatures and uses this input to drive an alarm. One of the measured variables of the monitor for each channel is the bandpass dynamic pressure.
You can use 3500 rack configuration software to configure the bandpass angular frequency with an additional notch filter. The monitor provides a recorder output control system application.
The main use is 3500/64M dynamic pressure
The monitor is provided with the following:
l Continuous comparison The protection machine drives the alarm Settings according to the configured alarm monitoring parameters
l Basic machine information required for operation maintenance personnel
Each channel, according to its configuration, limits the various parameters generated by its input signal called the variable under test. You can configure alarm and hazard setpoints for each active measurement variable.
>>>>>型号:140734-05 动态压力监测器 四通道监测器
