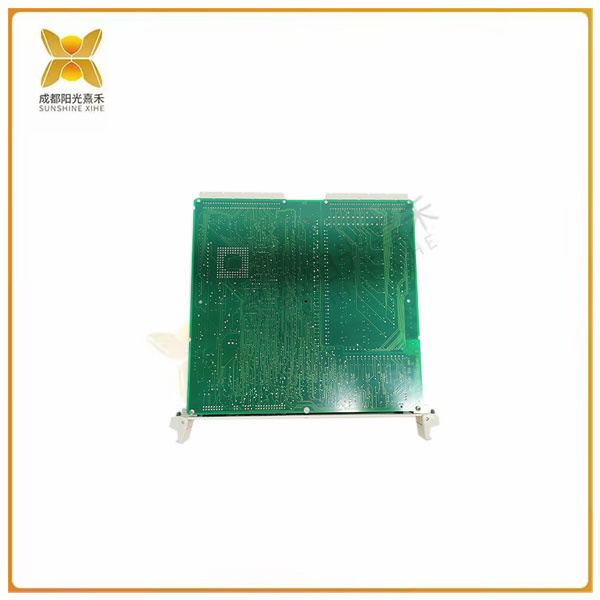

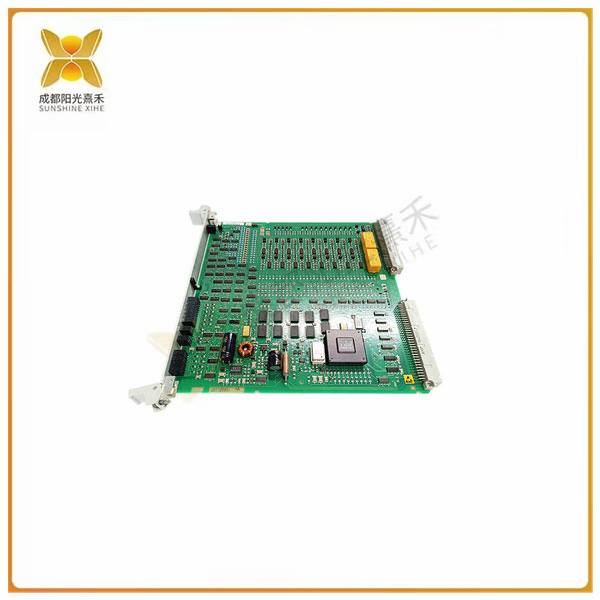

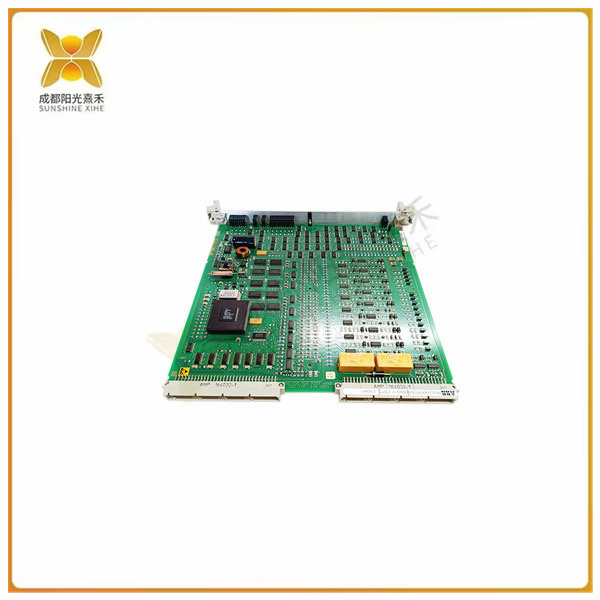

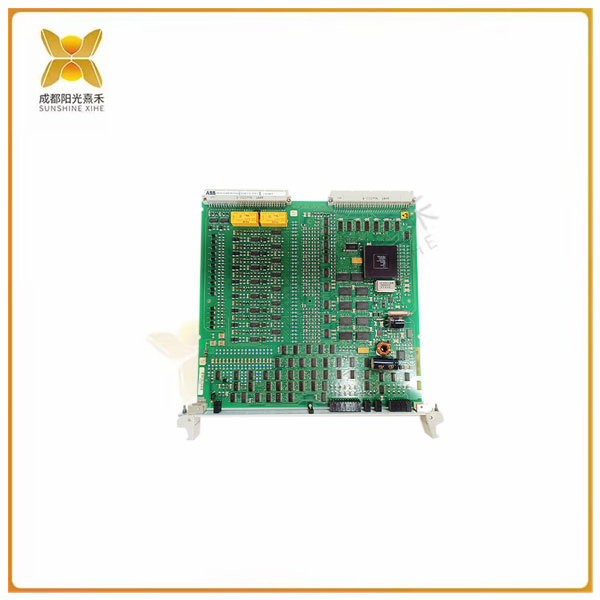

>>>>>型号:216DB61 控制卡模块 运动控制需求
【功能描述】
216DB61 控制卡模块通常是采用专业的运动控制芯片或高速DSP来满足一系列运动控制需求的控制单元，其可通过PCI、PC等总线接口安装到PC和工业PC上，可与步进和伺服驱动器连接，驱动步进和伺服电机完成各种运动(单轴运动、多轴联动、多轴插补等)，接收各种输入信号(限位原点信号，sensor)，可输出控制继电器、电磁阀、气缸等元件。用户可使用VC、VB等开发工具，调用运动控制卡函数库，快速开发出软件。
216DB61 控制卡模块以一个通用的XYZ三轴通用控制平台开发为例，此平台加上胶枪、刀具等模块后可用于点胶、切割等用途，运动控制卡采用深圳众为兴数控开发的ADTA，ADTA运动控制卡是一款经济实用型运动控制卡，轴伺服/步进电机控制，最大脉冲输出频率为MHz，每轴均有位置反馈输入；可实现-轴直线插补，可实现XYZ三轴插补，进行整体配合动作；带有路隔离数字输入，路隔离数字输出，可控制胶枪、刀具等模块；具有外部信号驱动、硬件缓存等功能，能满足绝大部分的轴以下工作平台的运动控制需求。
>>>>>型号:216DB61 控制卡模块 运动控制需求
【英文介绍】
216DB61 control card module is usually a professional motion control chip or high-speed DSP to meet a series of motion control needs of the control unit, which can be installed on PC and industrial PC through PCI, PC and other bus interfaces, and can be connected with stepper and servo drivers. Drive the stepper and servo motor to complete various movements (single-axis movement, multi-axis linkage, multi-axis interpolation, etc.), receive various input signals (limit origin signal, sensor), and output control relays, solenoid valves, cylinders and other components. Users can use VC, VB and other development tools, call the motion control card function library, quickly develop the software.
216DB61 control card module to a general XYZ three-axis general control platform development as an example, this platform with glue gun, tool and other modules can be used for dispensing, cutting and other purposes, the motion control card using Shenzhen Zhongweixing CNC development of ADTA, ADTA motion control card is an economic and practical type of motion control card, shaft servo/stepper motor control, The maximum pulse output frequency is MHz, and each axis has position feedback input; Can realize linear interpolation of -axis, can realize XYZ three-axis interpolation, and carry out the overall coordination action; With road isolation digital input, road isolation digital output, can control the glue gun, tool and other modules; It has the functions of external signal drive, hardware cache, etc., which can meet the motion control needs of most of the sub-axis working platforms.
>>>>>型号:216DB61 控制卡模块 运动控制需求
