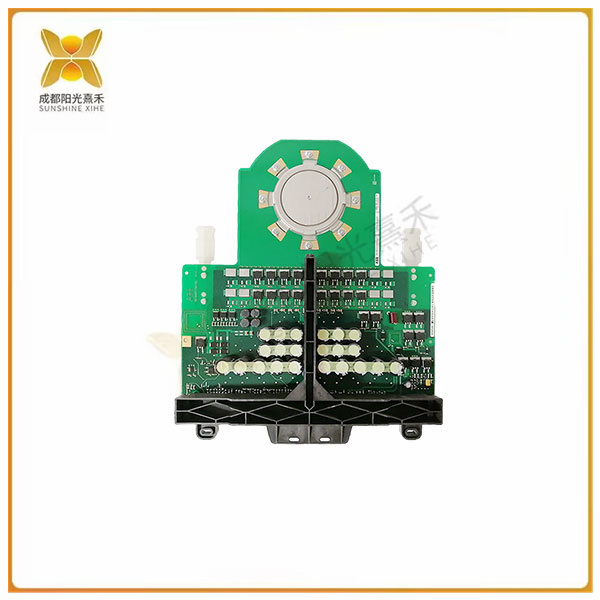

>>>>>型号:5SHX1445H0002 晶体闸流管 简称为可控硅
【功能描述】
5SHX1445H0002 ABB 晶体闸流管。晶体闸流管(Thyristor) 又称作可控硅整流器，曾被简称为可控硅，1957年美国通用电器公司开发出世界上第一晶闸管产品，并于1958年使其商业化。
5SHX1445H0002 ABB 晶体闸流管是一种中压变频器开发的用于巨型电力电子成套装置中新型电力半导体开关器件(集成门极换流晶闸管=门极换流晶闻管+门极单元)。1997年由ABB公司提出。IGCT使变流装置在功率、可靠性、开关速度、效率、成本、重量和体积等方面都取得了巨大进展，给电力电子成套装置带来了新的飞跃。
5SHX1445H0002 ABB 晶体闸流管1GCT是将GTO芯片与反并联二极管和门极驱动电路集成在一起，再与其门极驱动器在外围以低电感方式连接，结合了晶体管的稳定关断力和晶闸管低通态损拜的优点，在导通阶段发挥晶闸管的性能，关断阶段呈现晶体管的特性。GCT具有电流大、阳新电乐高关频率高、可靠性高、结构紧凑、低导通损耗等特点，而目造成本低，成品率高，有很好的应用前景。已用于电力系统电网装置(100MVA)和的中功率工业驱动装置 (5MW)1GCT在中压变频器领域内成功的应用了11年的时间(到09年为止)，5SHX1445H0002 ABB 晶体闸流管由于IGCT的高速开关能力无需缓冲电路，因而所需的功率元件数目更少，运行的可靠性大大增高
>>>>>型号:5SHX1445H0002 晶体闸流管 简称为可控硅
【英文介绍】
5SHX1445H0002 ABB thyristor. Thyristor (Thyristor), also known as thyristor rectifier, was once referred to as thyristor, in 1957 the United States General Electric Company developed the world's first thyristor products, and commercialized it in 1958.
The 5SHX1445H0002 ABB thyristor is a new type of power semiconductor switching device (integrated gate converter thyristor = gate converter transistor + gate unit) developed by medium voltage frequency converter for use in large power electronics sets. It was proposed by ABB in 1997. IGCT has made great progress in power, reliability, switching speed, efficiency, cost, weight and volume, and has brought a new leap to power electronic complete sets.
5SHX1445H0002 ABB thyristor 1GCT integrates the GTO chip with the anti-parallel diode and gate drive circuit, and then connects it with the gate driver in a low inductance mode at the periphery, combining the stable switching force of the transistor and the advantages of the low on-state loss of the thyristor to give full play to the performance of the thyristor in the on-stage. The off phase presents the characteristics of the transistor. GCT has the characteristics of high current, high turn-off frequency, high reliability, compact structure, low on-off loss, and low cost, high yield, so it has a good application prospect. Has been used in power systems for power grid devices (100MVA) and medium power industrial drives (5MW)1GCT in the field of medium voltage inverter successful application for 11 years (up to 2009), 5SHX1445H0002 ABB thyristor due to IGCT high speed switching capability without buffer circuit, Therefore, the number of power components required is less, and the reliability of operation is greatly increased
