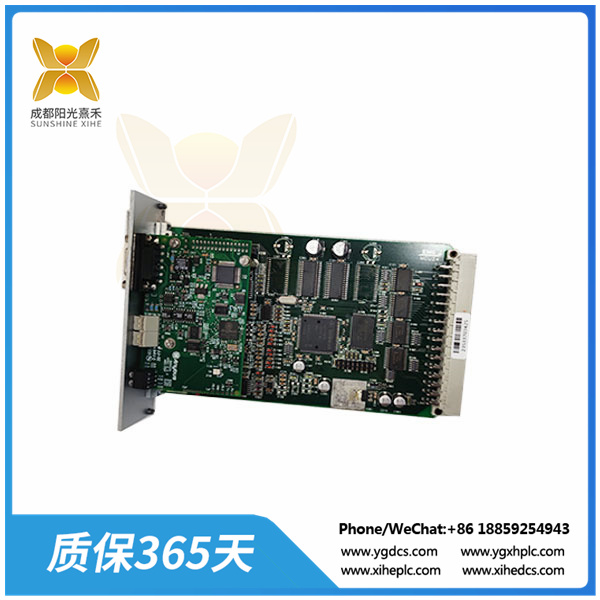

MCU2A01C0-4  |   电机控制单元  |  216MB66 HESG324510M1 |   SPAJ140C

型号：MCU2A01C0-4

类别：电机控制单元

毛重:0.54 kg

保障：365天

发货：3-5天/周

条件：全新 & 有货

付款：电汇，西联汇款

尺寸：20 毫米 x 125 毫米 x 50 毫米

重量：2公斤

保证：12个月

MCU2A01C0-4 电机控制单元(MCU)是一种智能微处理器电机保护和控制继电器

在INSUM 2系统中使用。在INSUM 2中有6种不同的MCU变体

根据其内部CT比，电压监测单元的可用性和范围进行分类

电源。下表显示了可用的不同MCU

编号为mcu2a001c0 -4 (1SCA022657R8610)和MCU2A02C0-4 (1SCA022657R8950)

可购买的时间更长，并于2019年3月进入淘汰阶段

分别于2019年9月

MCU2A01C0-4 两种MCU的主要区别在于电压监测功能

MCU2A01V2-4和MCU2A02V2-4。下图显示了两者的区别

MCU2A01C0-4 电压监测是在一个称为电压单元的单独硬件中处理的。的

电压单元有X17和X18端子，用于监测电压和功率

分别供应。

用于替换1SCA022657R8610 (MCU2A01C0-4)和1SCA022657R8950

(MCU2A02C0-4)， 1SCA022657R8790 (MCU2A01V2-4)和1SCA022657R9090

(MCU2A02V2-4)可在不使用/连接电压单元时分别使用。

Model: MCU2A01C0-4

Category: Motor control unit

Gross weight :0.54 kg

Guarantee: 365 days

Delivery: 3-5 days/week

Condition: New & available

Payment: Wire transfer, Western Union

Dimensions: 20 mm x 125 mm x 50 mm

Weight: 2 kg

Guarantee: 12 months

The MCU2A01C0-4 Motor Control Unit (MCU) is an intelligent microprocessor motor protection and control relay

It is used in the INSUM 2 system. There are 6 different MCU variants in INSUM 2

They are classified according to their internal CT ratio, availability and range of voltage monitoring units

Power. The following table shows the different MCUS available

Serial numbers mcu2a001c0-4 (1SCA022657R8610) and MCU2A02C0-4 (1SCA022657R8950)

It will be available for purchase for a longer period of time and will enter the phase-out phase in March 2019

In September 2019

MCU2A01C0-4 The main difference between the two MCUS is the voltage monitoring function

MCU2A01V2-4 and MCU2A02V2-4. The following figure shows the difference between the two

MCU2A01C0-4 Voltage monitoring is handled in a separate piece of hardware called a voltage unit. the

The voltage unit has X17 and X18 terminals for monitoring voltage and power

Supply separately.

Used to replace 1SCA022657R8610 (MCU2A01C0-4) and 1SCA022657R8950

(MCU2A02C0-4), 1SCA022657R8790 (MCU2A01V2-4) and 1SCA022657R9090

(MCU2A02V2-4) can be used separately when the voltage unit is not used/connected. .
