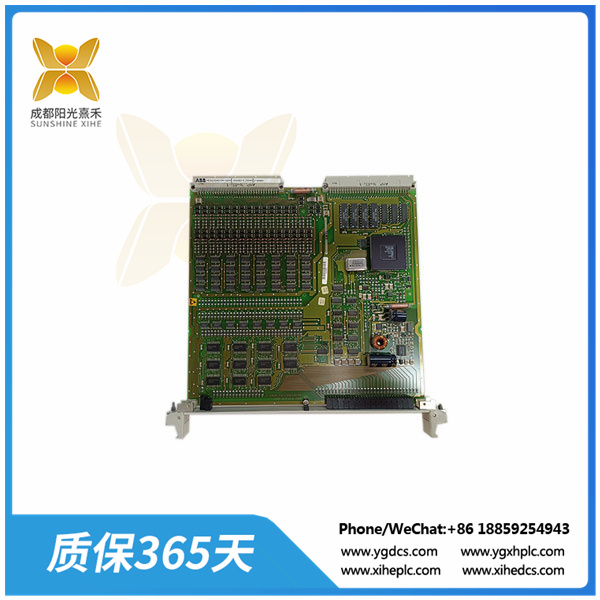

216EA61B HESG448230R1/G | 高压直流变流阀模块 | CI854AK01 3BSE030220R1

216EA61B HESG448230R1/G | 高压直流变流阀模块 | CI854AK01 3BSE030220R1  型号:216EA61B HESG448230R1/G  类别:高压直流变流阀模块  毛重:0.54 kg  保障:365天  发货:3-5天/周  A端电压:400V  B端电压:200V  C端电压:120V  高压侧最大电流:20A  额定输出功率:2KW

电话/Phone:18859254943 (微信同号)

邮箱/Email:sales@ygdcs.com

QQ:3561040004

产品详情

     216EA61B HESG448230R1/G  | 高压直流变流阀模块 |  CI854AK01 3BSE030220R1



  型号:216EA61B HESG448230R1/G

  类别:高压直流变流阀模块

  毛重:0.54 kg

  保障:365天

  发货:3-5天/周

  A端电压:400V

  B端电压:200V

  C端电压:120V

  高压侧最大电流:20A

  额定输出功率:2KW

  最大效率:>94%

  直流稳压精度:1%

  直流稳流精度:1%

  216EA61B HESG448230R1/G 高压直流变流阀模块是电力系统中重要的组成部分,特别是在特高压直流输电技术(HVDC)中,它扮演着核心设备的角色。以下是关于高压直流变流阀模块的一些关键信息:

  主要组成部分:

  晶闸管级:这是特高压直流换流阀模块的主要部分之一,由多个晶闸管或二极管组成,用于控制电流的导通和关断。

  饱和电抗器:其作用是抑制流过晶闸管电流的变化率,限制晶闸管产生的电压,提高晶闸管换流阀分布电压的均匀性。

  阻容均压回路(对于串联IGBT高压直流换流阀):与饱和电抗器的作用相似,用于抑制IGBT两端电压的变化率,提高IGBT换流阀分布电压的均匀性。

  工作原理:

  216EA61B HESG448230R1/G 输入端通常是三相交流电源,经过桥式整流器(由晶闸管或二极管组成)将交流电转换为直流电。

  为了减少直流电压中的脉动成分,通常会在直流电路中添加滤波器,由电容器和电感器组成,帮助平滑直流电压。

  应用场景:

  特高压直流输电:216EA61B HESG448230R1/G 是长距离、大容量的电力输送的理想选择,特别适用于海底电缆和远距离输电等情况。高压直流变流阀模块通过将交流电转换为直流电,在长距离输电中降低输电损耗和电力传输损失。



  Model: 216EA61B HESG448230R1/G

  Category: HVDC converter module

  Gross weight :0.54 kg

  Guarantee: 365 days

  Delivery: 3-5 days/week

  A terminal voltage: 400V

  B terminal voltage: 200V

  C terminal voltage: 120V

  Maximum current on the high voltage side: 20A

  Rated output power: 2KW

  Maximum efficiency: >94%

  Dc voltage regulation accuracy: 1%

  Dc steady current accuracy: 1%

  216EA61B HESG448230R1/G HVDC converter module is an important part of the power system, especially in the UHVDC transmission technology (HVDC), it plays the role of the core equipment. Here are some key information about the HVDC converter module:

  Main components:

  Thyristor stage: This is one of the main parts of the UHV DC converter valve module and consists of multiple thyristors or diodes to control the on-off and off-off of the current.

  Saturation reactor: Its function is to inhibit the rate of change of the current flowing through the thyristor, limit the voltage generated by the thyristor, and improve the uniformity of the voltage distribution of the thyristor converter valve.

  Resistive-capacitance voltage equalizing circuit (for series IGBT high voltage DC converter valve) : similar to the role of saturated reactor, used to suppress the change rate of the voltage at both ends of the IGBT, improve the uniformity of the distributed voltage of the IGBT converter valve.

  How it works:

  The 216EA61B HESG448230R1/G input is usually a three-phase AC power supply, which is converted from AC to DC by a bridge rectifier (consisting of a thyristor or diode).

  To reduce the pulsating component of the DC voltage, filters are usually added to the DC circuit, consisting of capacitors and inductors, to help smooth the DC voltage.

  Application scenario:

  Uhvdc transmission: 216EA61B HESG448230R1/G is ideal for long-distance, large-capacity power transmission, especially for submarine cables and long-distance transmission. The HVDC converter module reduces transmission losses and power transmission losses in long-distance transmission by converting alternating current to direct current.
