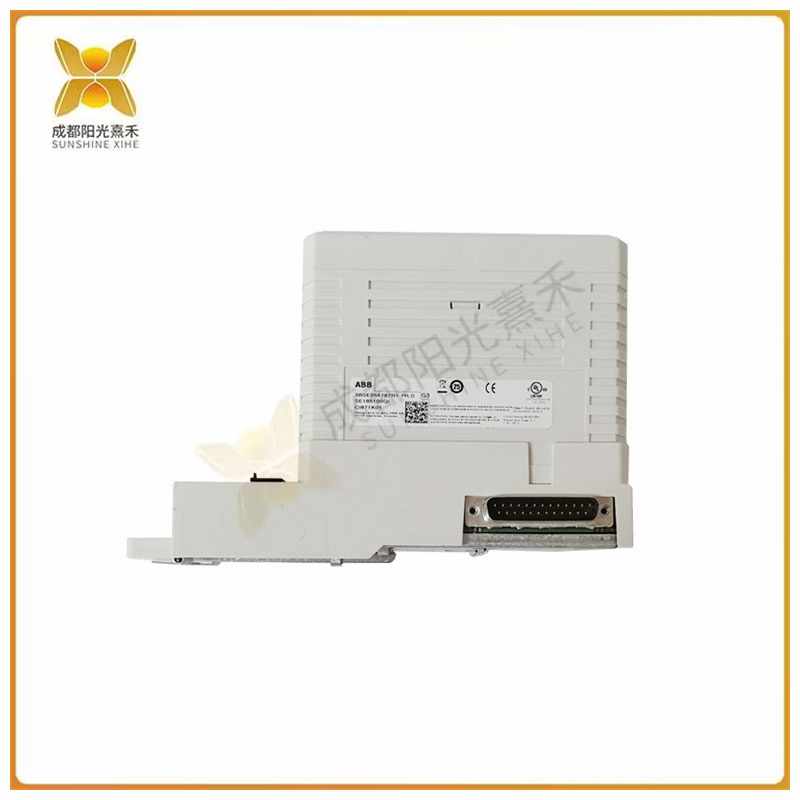

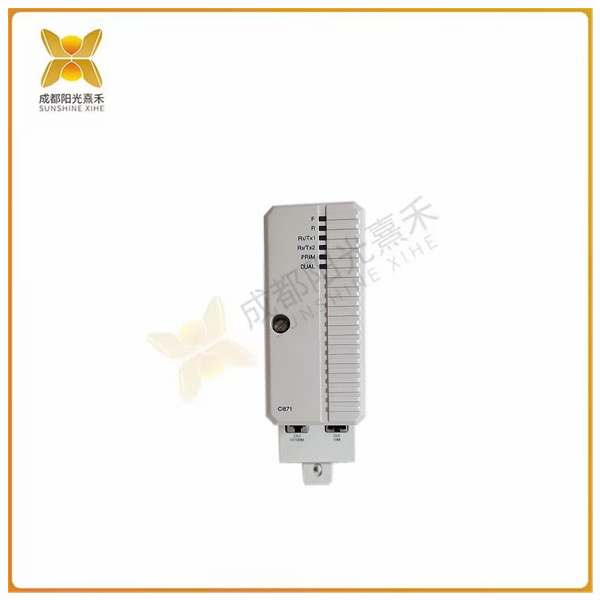

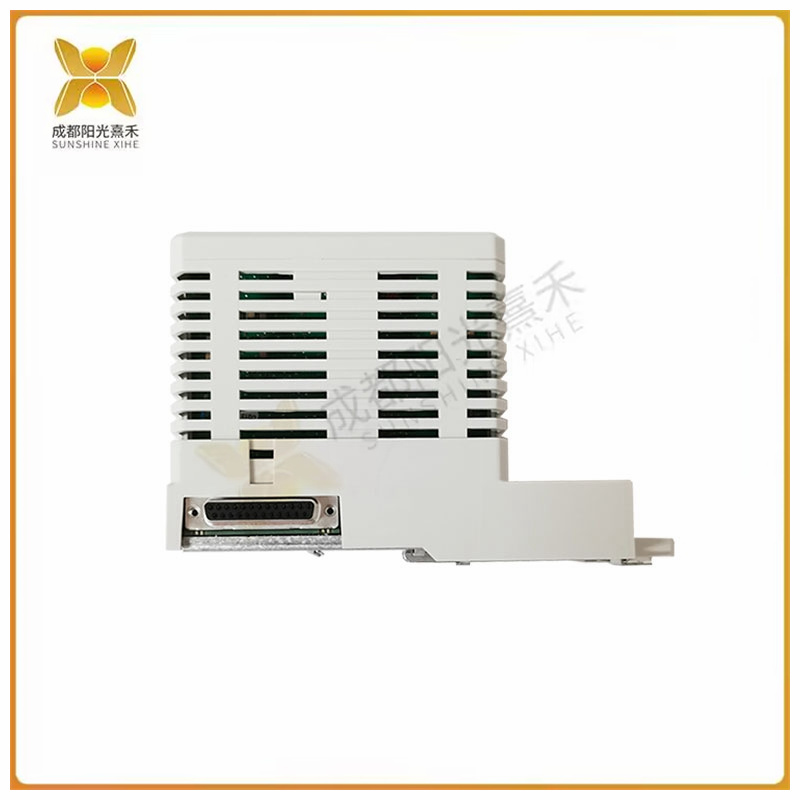

>>>>>型号:CI871 AC 800M 通信接口 以太网连接
【功能描述】

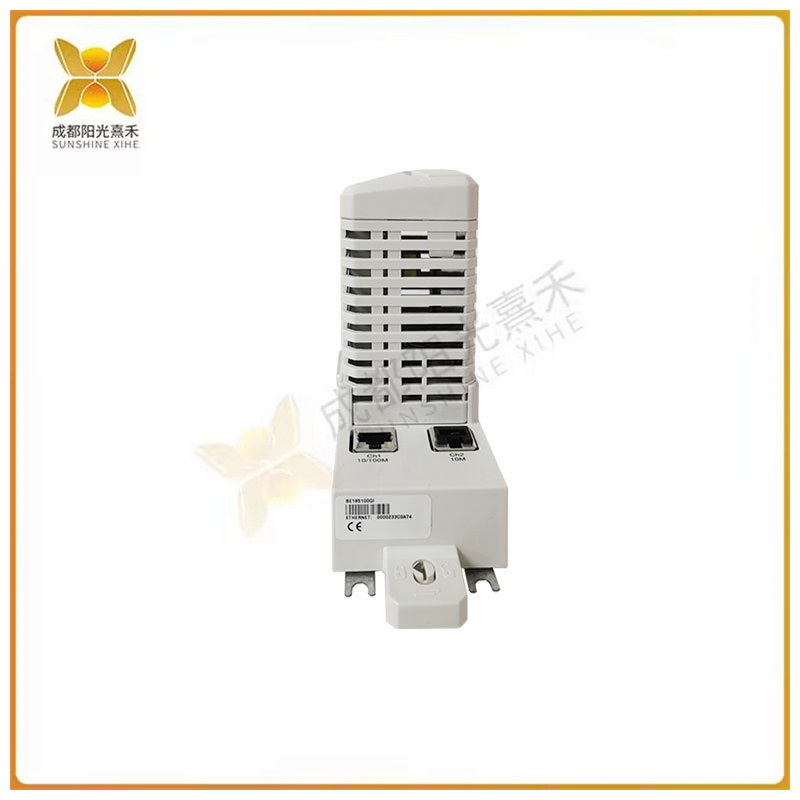

CI871A 是 AC 800M 通信接口,通过以太网连接到 PROFINET IO 设备。TP867 底板有两个 RJ45 以太网连接器,但只有支持 100Mbps 的 CH1 连接器用于 PROFINET IO 连接。以太网电缆必须通过以太网交换机连接到 PROFINET IO 网络。
CI871 扩展单元包含 CEX 总线逻辑、通信单元和 DC/DC 转换器,该转换器通过 CEX-Bus 从 +24 V 电源提供所需的电压。
CI871A 模块仅适用于 System 800xA 6.0.3.3、6.1.1 及后续版本
特点和优势
通过以太网连接PROFINET IO设备
一般信息
产品编号:编号:3BSE056767R3
ABB型号名称:800×A 6.0
目录说明:CI871 PROFINET IO 软件许可证 800xA
详细描述:CI871K01 仅限 PROFINET IO 通信接口许可证。
>>>>>型号:CI871 AC 800M 通信接口 以太网连接
【英文介绍】
The CI871A is an AC 800M communication interface that connects to the PROFINET IO device over Ethernet. The TP867 baseboard has two RJ45 Ethernet connectors, but only the 100Mbps CH1 connector is used for PROFINET IO connectivity. The Ethernet cable must be connected to the PROFINET IO network through an Ethernet switch.
The CI871 expansion unit contains the CEX Bus logic, a communication unit, and a DC/DC converter that delivers the required voltage from a +24 V power supply via the CEX-BUS.
The CI871A module is only applicable to System 800xA 6.0.3.3, 6.1.1 and later versions
Characteristics and advantages
Connect the PROFINET IO device via Ethernet
General information
Product Number: Number: 3BSE056767R3
ABB model name: 800 x A 6.0
Directory Description: CI871 PROFINET IO software license 800xA
Detailed description: CI871K01 is licensed for PROFINET IO communication interface only.
