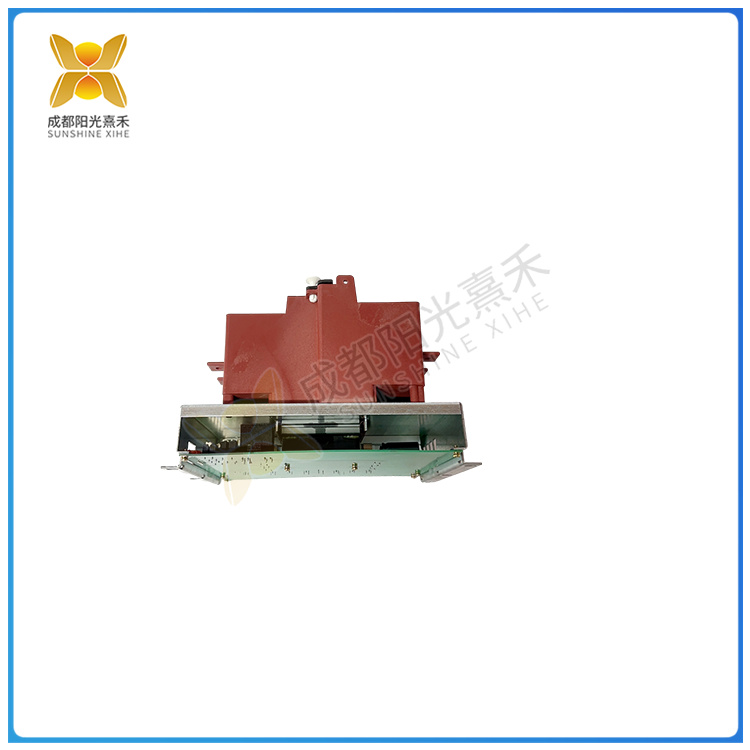

>>>>>型号:3BHB005243R0105 控制板
【功能描述】
3BHB005243R0105控制板
传动单元包括下列标准印刷电路板:
●主电路接口板(AINT) ;
●电机控制和/O电路板(RMIO-02)(与AINT通过光纤连接) :
●输入桥路控制板(AINP) ;
●包括压敏电阻和用于可控硅整流器的缓冲器的输入桥路保护板(AIBP);
电源供应板(APOW) :
●门极控制板[AGDR-61 或AGDR-62 (带du/dt 限制选项+E204)] ;
●诊断和控制盘接口板(ADPI) :
●带选项+E202的EMC滤波器板(NRFC和ARFC);
●带选项+D150的制动斩波器控制板(ABRC)。
>>>>>型号:3BHB005243R0105 控制板
【英文介绍】
3BHB005243R0105 Control board
The drive unit includes the following standard printed circuit boards:
● Main circuit interface board (AINT);
● Motor control and /O circuit board (RMIO-02)(fiber optic connection with AINT) :
● Input Bridge Control Panel (AINP);
● Input bridge protection plate (AIBP) including varistor and buffer for thyristor rectifier;
Power Supply Board (APOW) :
● Gate control panel [AGDR-61 or AGDR-62 (with du/dt limit option +E204)];
● Diagnostic and Control Panel Interface Board (ADPI) :
● EMC Filter boards (NRFC and ARFC) with option +E202;
● Brake Chopper Control Board (ABRC) with option +D150.
>>>>>型号:3BHB005243R0105 控制板
