>>>>>型号:560CMU05 串行接口前板 以太网接口的IP地址
【功能描述】
560CMU05 该模块有一个跳线X1，用于强制以太网接口的IP地址设置为默认值。

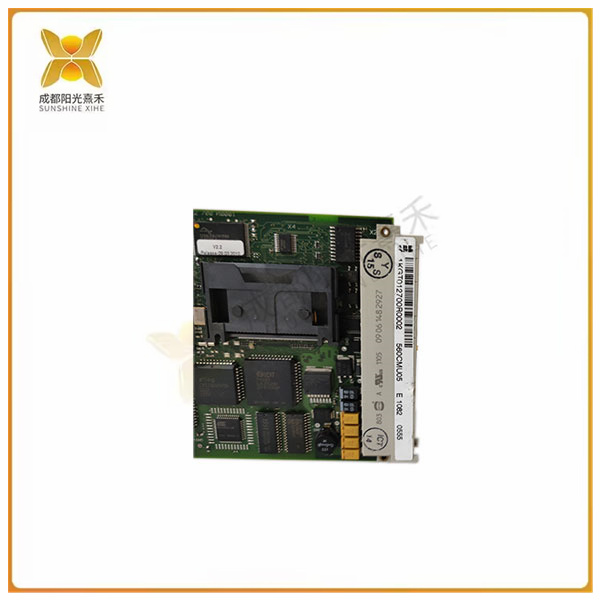

ABB 560CMU05 通信单元
全球商业别名:560CMU05 R0002产品ID:1KGT012700R0002 ABB型号名称:-目录描述:用于RTU560的通信单元(CMU)，4个串行端口，2个以太网端口详细描述:RTU560的中央模块，带32位CPU – 4x串行通信接口(RS-232或RS-485)，用于本地/远程通信- 2x以太网接口(10/100BaseT)协议许可证。 功能和紧凑型闪存不包括在内类别零件和服务电网自动化和通信产品远程终端单元只要可用附加信息ABB类型名称:-原产国:德国(DE)海关税则号:85176200全球商业别名:560CMU05 R0002毛重:0.29 kg发票描述:用于RTU560的通信单元(CMU)，4个串行端口， 2个以太网端口定制:无最低订购量:1件订购倍数:1件包装级别1单位:0纸箱部件类型:新产品名称:560CMU05 R0002产品净高度:5.8 cm产品净长度:14 cm产品净重量:0.21 kg产品净宽度:20.3 cm产品类型:仅未定义报价:无替换产品ID(旧):1KGT012700R0001替换产品ID(新):1KGT036300R0002销售单位
如果重新启动后跳线设置为1-2，560CMU05 以太网接口E1将使用IP地址192.168.0.1（子网掩码255.255.255.0，网关192.168.0.20）。
连接到RTU560串行外围总线（SPB）和
RTU560系统总线是根据DIN 41612通过48极DIN-F插座连接器完成的。
通信接口
在所有接口上，可以使用不同的协议类型。可能的
限制可以在文件中找到：RTU500系列接口和协议（1KGT 150 853）。
>>>>>型号:560CMU05 串行接口前板 以太网接口的IP地址
【英文介绍】
560CMU05 This module has a jumper X1 that forces the IP address of the Ethernet interface to be set to the default value.
ABB 560CMU05 communication unit
Global business alias :560CMU05 R0002 Product ID:1KGT012700R0002 ABB Model Name :- Catalog Description: Communication Unit (CMU) for RTU560, 4 serial ports, 2 Ethernet ports Details: Central module for RTU560, 2 Ethernet ports With 32-bit CPU - 4x serial communication interface (RS-232 or RS-485) for local/remote communication - 2x Ethernet Interface (10/100BaseT) protocol license. Features and Compact Flash Memory not included Category Parts and Services Power Grid Automation and Communication Products Remote Terminal Units as long as Additional information is available ABB Type Name :- Country of Origin: Germany (DE) Customs Tariff Number :85176200 Global Business Alias :560CMU05 R0002 Gross Weight :0.29 kg Invoice description: Communication unit (CMU) for RTU560, 4 serial ports, Two Ethernet ports Customization: None Minimum order quantity :1 piece Order multiple :1 piece package level 1 unit :0 Carton component type: New product name :560CMU05 R0002 Net height: 5.8cm Net length: 14cm Net weight: 0.21kg Net width :20.3 cm Product type: Only undefined Offer: None Replacement product ID(old):1KGT012700R0001 Replacement product ID(new):1KGT036300R0002 Sales unit
If the jumper is set to 1-2,560 after the reboot, the Ethernet E1 of CMU05 uses the IP address 192.168.0.1 (subnet mask 255.255.255.0, gateway 192.168.0.20).
Connect to the RTU560 Serial Peripheral Bus (SPB) and
The RTU560 system bus is completed according to DIN 41612 via a 48-pole DIN-F socket connector.
Communication interface
On all interfaces, different protocol types can be used. possible
The limitations can be found in the file: RTU500 series interfaces and protocols (1KGT 150 853).
