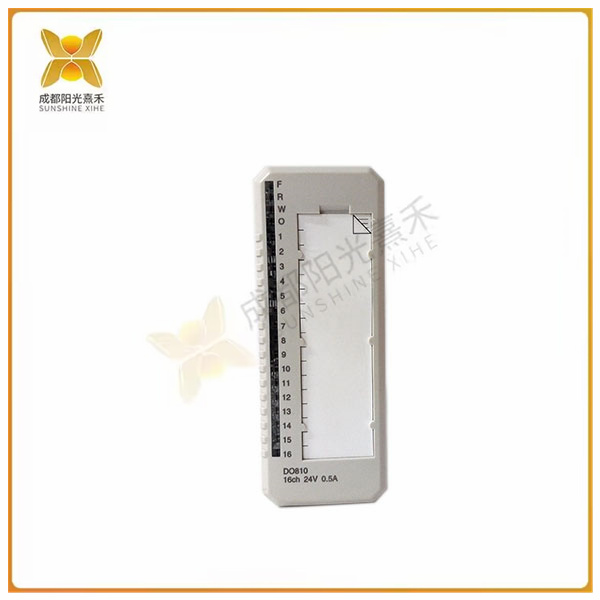

>>>>>型号:DO810 16 个数字输出 输出具有短路、过压和过温保护
【功能描述】
该模块有 16 个数字输出。输出电压范围为 10 至 30 伏，最大连续输出电流为 0.5 A。输出具有短路、过压和过温保护。输出分为两个独立隔离的组，每组有 8 个输出通道和 1 个电压监控输入。每个输出通道由短路和过温保护高侧驱动器、EMC保护元件、感性负载抑制、输出状态指示LED和光隔离栅组成。
如果电压消失，过程电压监控输入会发出通道错误信号。错误信号可以通过 ModuleBus 读取。输出具有限流功能，并具有过热保护功能。如果输出过载，则输出电流将受到限制。
特点和优势
16 个通道用于 24 V 直流电流源输出
2 组隔离的 8 个通道，带过程电压监控
输出状态指示灯
OSP 在检测到错误时将输出设置为预定状态
接地短路保护和 30 V 短路保护
过压和过温保护
>>>>>型号:DO810 16 个数字输出 输出具有短路、过压和过温保护
【英文介绍】
The module has 16 digital outputs. The output voltage ranges from 10 to 30 volts, with A maximum continuous output current of 0.5 A. The output is protected against short circuit, overvoltage and overtemperature. The outputs are divided into two separate groups, each with eight output channels and one voltage monitoring input. Each output channel consists of short circuit and overtemperature protected high side drivers, EMC protection elements, inductive load suppression, output status indicator leds and optical isolation barriers.
If the voltage disappears, the process voltage monitoring input emits a channel error signal. The error signal can be read by the ModuleBus. The output has current limiting function and overheat protection function. If the output is overloaded, the output current will be limited.
Characteristics and advantages
16 channels for 24 V DC current source output
2 sets of 8 isolated channels with process voltage monitoring
Output status light
The OSP sets the output to a scheduled state when an error is detected
Ground short circuit protection and 30 V short circuit protection
Over voltage and over temperature protection
