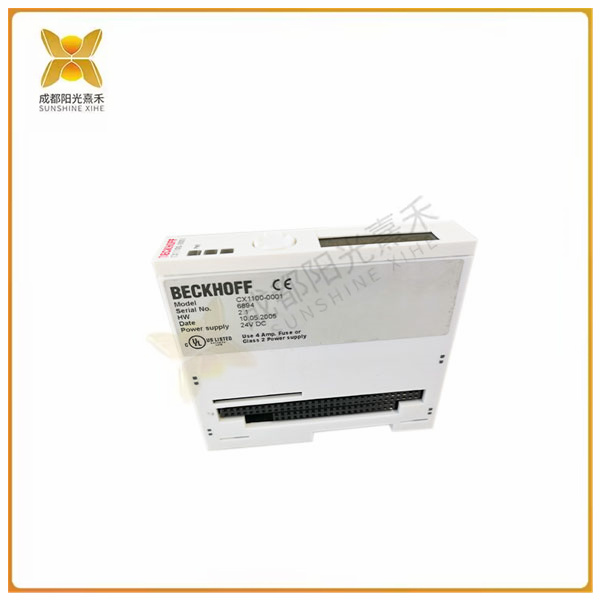

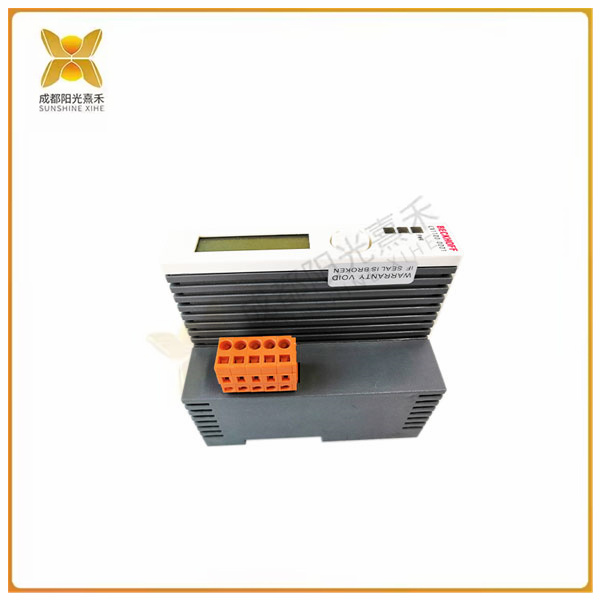

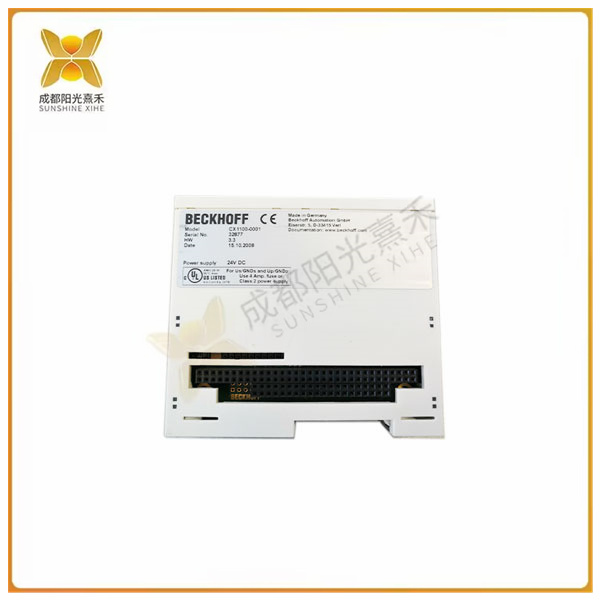

>>>>>型号:CX11000001 电源装置和 I/O 接口
【功能描述】
Beckhoff CX11000001该电源具有重要功能：集成的 NOVRAM 允许对过程数据进行防电压故障存储，LC 显示屏具有两行，每行 16 个字符，用于输出系统和用户消息。连接总线端子模块和现场总线盒模块的可能性使控制器具有高度可变、可扩展的 I/O 电平，具有各种信号。I/O 数据存储在 DPRAM 中，CPU 可通过系统总线访问该 DPRAM。所有其他系统组件的电源通过内部 PC/104 总线确保;不需要单独的供应管线。CX 系统的电源可现场更换。电源提供了重要的功能:集成的NOVRAM允许过程数据的防电压故障存储，具有两行各16个字符的LC显示器用于系统和用户信息的输出。连接总线终端和现场总线盒模块的可能性产生了具有高度可变的、可扩展的控制器输入-输出与各种各样的信号电平。I/O数据存储在DPRAM中，CPU可以通过系统总线访问它。所有其他系统组件的电源通过内部PC/104总线保证;不需要单独的供给线。CX系统的电源可现场更换。除了电源，CX1100-0001还提供了三个基本功能:显示器、导航开关和NOVRAM。它不包含I/O连接器。
电源模块有多种输入输出选择，并且可以重复加或交叉加，构成积木式组合电源，从而实现多路输入输出。相比分立式，调试更加简单安全，使设计应用大大简化，缩短开发时间。模块一般采用自动化工艺，保证品质和可靠性。电源模块是经过了专业电源研发团队按照严格标准来选择元件，经过设计和开发，进行过完善的可靠性测试和批量生产测试。而分立式方案就较难进行深入的测试。模块一般采用了多层PCB回铝基板，功率密度较高，体积较小，节省了系统的占用空间。目前DC-DC模块的1/4砖高达1000W，分立式方案难以达到这样的标准。
>>>>>型号:CX11000001 电源装置和 I/O 接口
【英文介绍】
Beckhoff CX11000001 The power supply has important features: the integrated NOVRAM allows for voltage fail-proof storage of process data, and the LC display has two lines of 16 characters each for output system and user messages. The possibility of connecting the bus terminal module and the field bus box module gives the controller a highly variable, scalable I/O level with a variety of signals. I/O data is stored in DPRAM, which is accessible by the CPU through the system bus. Power to all other system components is secured via the internal PC/104 bus; No separate supply lines are required. The power supply of the CX system can be replaced on-site. The power supply provides important features: integrated NOVRAM allows voltage fail-proof storage of process data, LC display with two lines of 16 characters each for the output of system and user information. The possibility of connecting bus terminals and field bus box modules produces a controller with highly variable and scalable input-output with a wide variety of signal levels. The I/O data is stored in DPRAM and the CPU can access it via the system bus. Power to all other system components is guaranteed via the internal PC/104 bus; No separate supply lines are required. The power supply of the CX system can be replaced on-site. In addition to power, the CX1100-0001 offers three basic functions: display, navigation switch, and NOVRAM. It does not include an I/O connector.
The power module has a variety of input and output options, and can be repeated or cross-added to form a modular power supply, so as to achieve multiple input and output. Compared with separate, debugging is more simple and safe, which greatly simplifies the design and application and shortens the development time. Modules generally use automated processes to ensure quality and reliability. The power module has been selected by a professional power supply research and development team in accordance with strict standards, and has been designed and developed, and has carried out perfect reliability testing and mass production testing. Discrete schemes are more difficult to conduct in-depth testing. Modules generally use multi-layer PCB aluminum substrate, high power density, small volume, saving the system space. At present, the 1/4 brick of the DC-DC module is as high as 1000W, and the separate scheme is difficult to reach such a standard.
